Participant
ParticipantDetailsRequestModel Complex Type
Participant : ParticipantDetailsRequestModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Participant

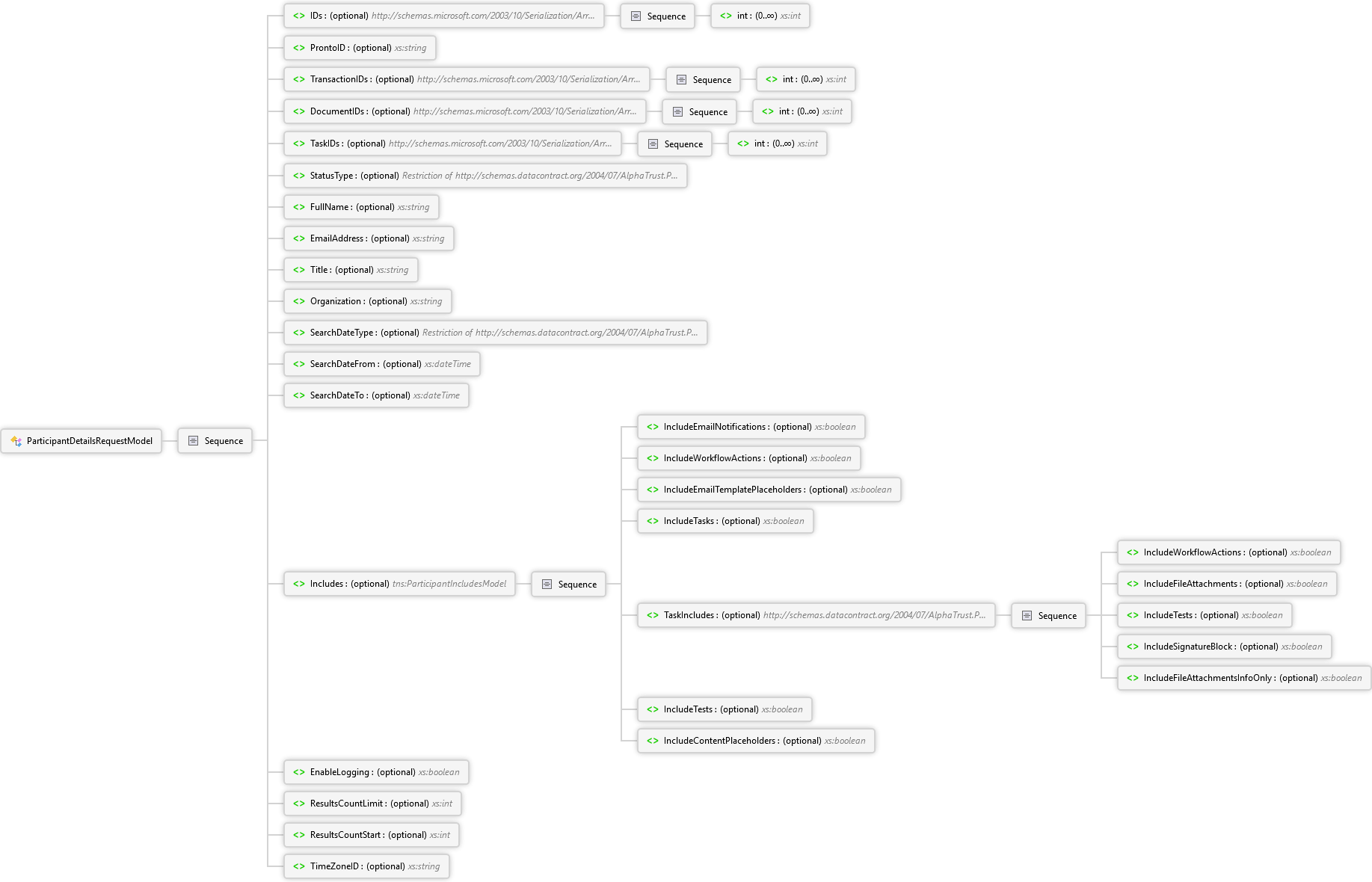

Diagram
TimeZoneID Element ResultsCountStart Element ResultsCountLimit Element EnableLogging Element IncludeContentPlaceholders Element IncludeTests Element IncludeFileAttachmentsInfoOnly Element IncludeSignatureBlock Element IncludeTests Element IncludeFileAttachments Element IncludeWorkflowActions Element Sequence TaskIncludes Element IncludeTasks Element IncludeEmailTemplatePlaceholders Element IncludeWorkflowActions Element IncludeEmailNotifications Element Sequence Includes Element SearchDateTo Element SearchDateFrom Element SearchDateType Element Organization Element Title Element EmailAddress Element FullName Element StatusType Element int Element Sequence TaskIDs Element int Element Sequence DocumentIDs Element int Element Sequence TransactionIDs Element ProntoID Element int Element Sequence IDs Element Sequence ParticipantDetailsRequestModel Complex Type
Overview
ParticipantDetailsRequestModel
Sequence
IDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
ProntoID optional xs:string
TransactionIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
DocumentIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
TaskIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
StatusType optional Option.TransactionStatusTypes Simple Type
FullName optional xs:string
EmailAddress optional xs:string
Title optional xs:string
Organization optional xs:string
SearchDateType optional Option.TransactionSearchDateTypes Simple Type
SearchDateFrom optional xs:dateTime
SearchDateTo optional xs:dateTime
Includes optional ParticipantIncludesModel Complex Type
Sequence
IncludeEmailNotifications optional xs:boolean
IncludeWorkflowActions optional xs:boolean
IncludeEmailTemplatePlaceholders optional xs:boolean
IncludeTasks optional xs:boolean
TaskIncludes optional TaskIncludesModel Complex Type
Sequence
IncludeWorkflowActions optional xs:boolean
IncludeFileAttachments optional xs:boolean
IncludeTests optional xs:boolean
IncludeSignatureBlock optional xs:boolean
IncludeFileAttachmentsInfoOnly optional xs:boolean
IncludeTests optional xs:boolean
IncludeContentPlaceholders optional xs:boolean
EnableLogging optional xs:boolean
ResultsCountLimit optional xs:int
ResultsCountStart optional xs:int
TimeZoneID optional xs:string
Used By
participantDetailsRequest Element
ParticipantDetailsRequestModel Element
Source
<xs:complexType name="ParticipantDetailsRequestModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IDs" nillable="true" type="q20:ArrayOfint" xmlns:q20="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="ProntoID" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TransactionIDs" nillable="true" type="q21:ArrayOfint" xmlns:q21="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="DocumentIDs" nillable="true" type="q22:ArrayOfint" xmlns:q22="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="TaskIDs" nillable="true" type="q23:ArrayOfint" xmlns:q23="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="StatusType" type="q24:Option.TransactionStatusTypes" xmlns:q24="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="FullName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="EmailAddress" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Title" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Organization" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SearchDateType" type="q25:Option.TransactionSearchDateTypes" xmlns:q25="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchDateFrom" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="SearchDateTo" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="Includes" nillable="true" type="tns:ParticipantIncludesModel" />
    <xs:element minOccurs="0" name="EnableLogging" type="xs:boolean" />
    <xs:element minOccurs="0" name="ResultsCountLimit" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ResultsCountStart" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="TimeZoneID" nillable="true" type="xs:string" />
  </xs:sequence>
</xs:complexType>
See Also
Participant
