urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
GetTransactionEvidencePackages Element
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc : GetTransactionEvidencePackages Element
Namespace urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

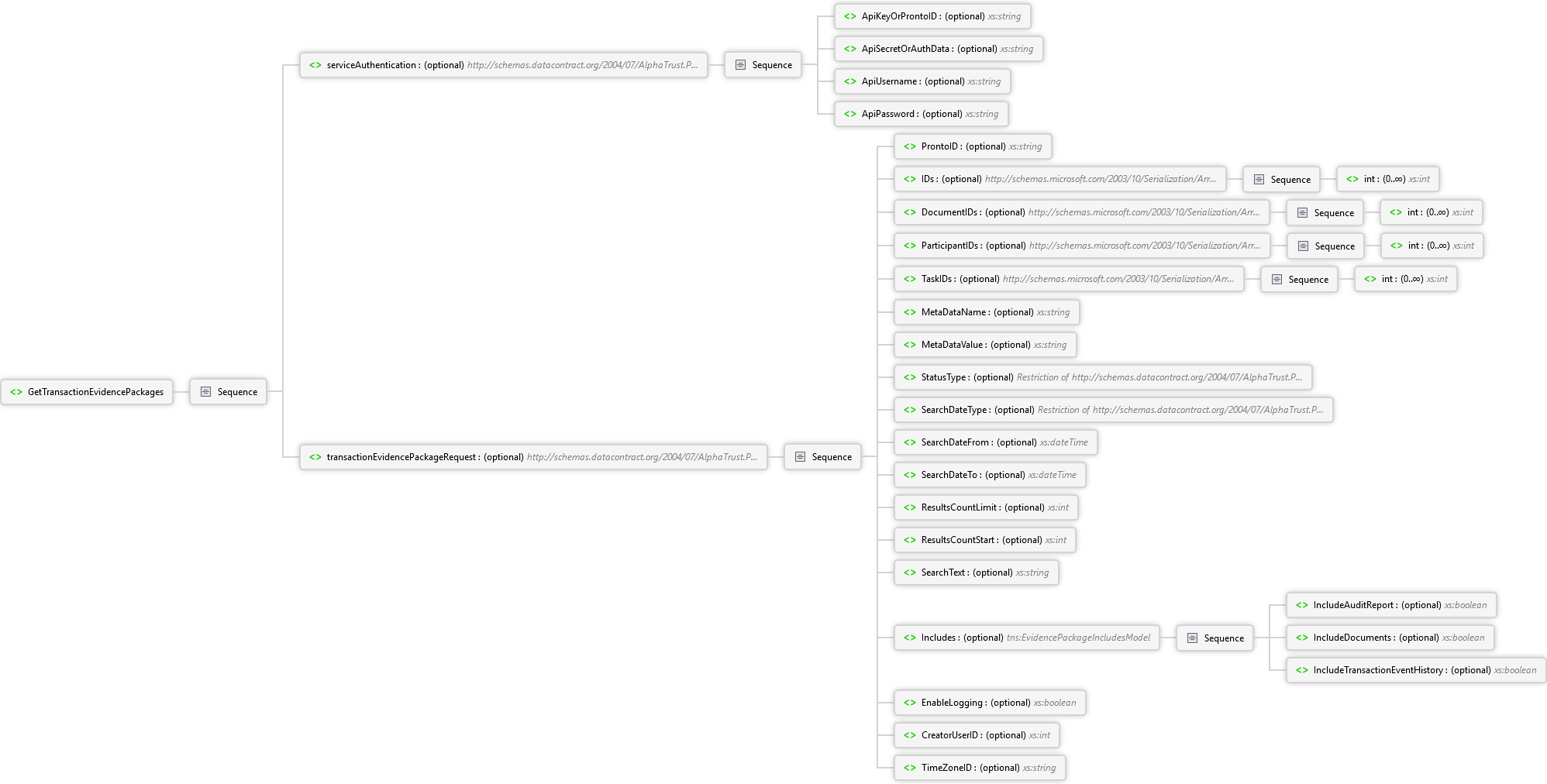

Diagram
TimeZoneID Element CreatorUserID Element EnableLogging Element IncludeTransactionEventHistory Element IncludeDocuments Element IncludeAuditReport Element Sequence Includes Element SearchText Element ResultsCountStart Element ResultsCountLimit Element SearchDateTo Element SearchDateFrom Element SearchDateType Element StatusType Element MetaDataValue Element MetaDataName Element int Element Sequence TaskIDs Element int Element Sequence ParticipantIDs Element int Element Sequence DocumentIDs Element int Element Sequence IDs Element ProntoID Element Sequence transactionEvidencePackageRequest Element ApiPassword Element ApiUsername Element ApiSecretOrAuthData Element ApiKeyOrProntoID Element Sequence serviceAuthentication Element Sequence GetTransactionEvidencePackages Element
Overview
GetTransactionEvidencePackages
Sequence
serviceAuthentication optional ServiceAuthenticationModel Complex Type
Sequence
ApiKeyOrProntoID optional xs:string
ApiSecretOrAuthData optional xs:string
ApiUsername optional xs:string
ApiPassword optional xs:string
transactionEvidencePackageRequest optional TransactionEvidencePackageRequestModel Complex Type
Sequence
ProntoID optional xs:string
IDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
DocumentIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
ParticipantIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
TaskIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
MetaDataName optional xs:string
MetaDataValue optional xs:string
StatusType optional Option.TransactionStatusTypes Simple Type
SearchDateType optional Option.TransactionSearchDateTypes Simple Type
SearchDateFrom optional xs:dateTime
SearchDateTo optional xs:dateTime
ResultsCountLimit optional xs:int
ResultsCountStart optional xs:int
SearchText optional xs:string
Includes optional EvidencePackageIncludesModel Complex Type
Sequence
IncludeAuditReport optional xs:boolean
IncludeDocuments optional xs:boolean
IncludeTransactionEventHistory optional xs:boolean
EnableLogging optional xs:boolean
CreatorUserID optional xs:int
TimeZoneID optional xs:string
Source
<xs:element name="GetTransactionEvidencePackages" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q27:ServiceAuthenticationModel" xmlns:q27="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="transactionEvidencePackageRequest" nillable="true" type="q28:TransactionEvidencePackageRequestModel" xmlns:q28="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
