PlacementModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

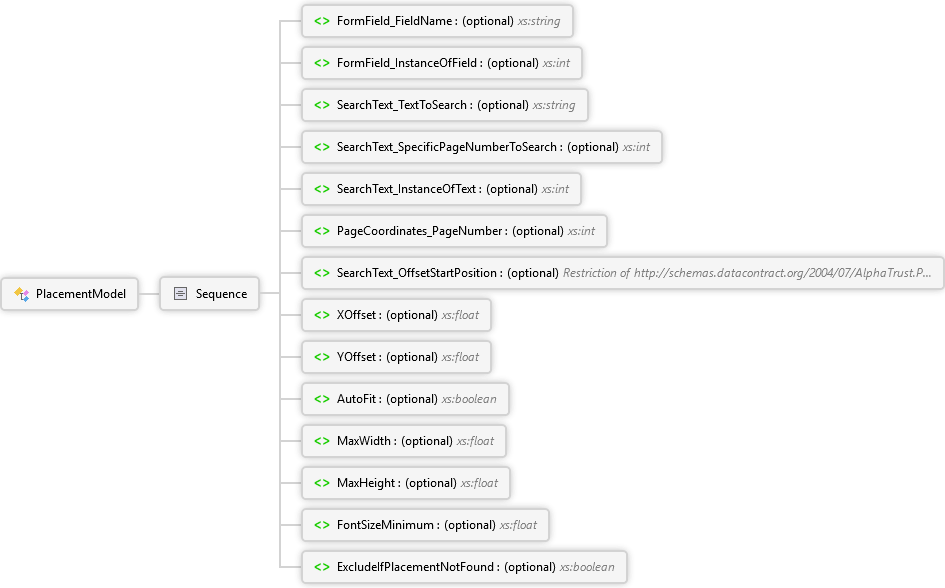

Diagram

Overview

PlacementModel

Sequence

FormField_FieldName optional xs:string

FormField_InstanceOfField optional xs:int

SearchText_TextToSearch optional xs:string

SearchText_SpecificPageNumberToSearch optional xs:int

SearchText_InstanceOfText optional xs:int

PageCoordinates_PageNumber optional xs:int

SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type

XOffset optional xs:float

YOffset optional xs:float

AutoFit optional xs:boolean

MaxWidth optional xs:float

MaxHeight optional xs:float

FontSizeMinimum optional xs:float

ExcludeIfPlacementNotFound optional xs:boolean

Used By

PlacementModel Element

Source

<xs:complexType name="PlacementModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="FormField_FieldName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FormField_InstanceOfField" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="SearchText_TextToSearch" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SearchText_SpecificPageNumberToSearch" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="SearchText_InstanceOfText" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="PageCoordinates_PageNumber" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="SearchText_OffsetStartPosition" type="q12:Option.SignatureBlockSearchTextOffsetStartPositions" xmlns:q12="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="XOffset" type="xs:float" />
    <xs:element minOccurs="0" name="YOffset" type="xs:float" />
    <xs:element minOccurs="0" name="AutoFit" type="xs:boolean" />
    <xs:element minOccurs="0" name="MaxWidth" nillable="true" type="xs:float" />
    <xs:element minOccurs="0" name="MaxHeight" nillable="true" type="xs:float" />
    <xs:element minOccurs="0" name="FontSizeMinimum" nillable="true" type="xs:float" />
    <xs:element minOccurs="0" name="ExcludeIfPlacementNotFound" type="xs:boolean" />
  </xs:sequence>
</xs:complexType>
