TaskWorkflowActionModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

Base Type

Extension of Action Complex Type

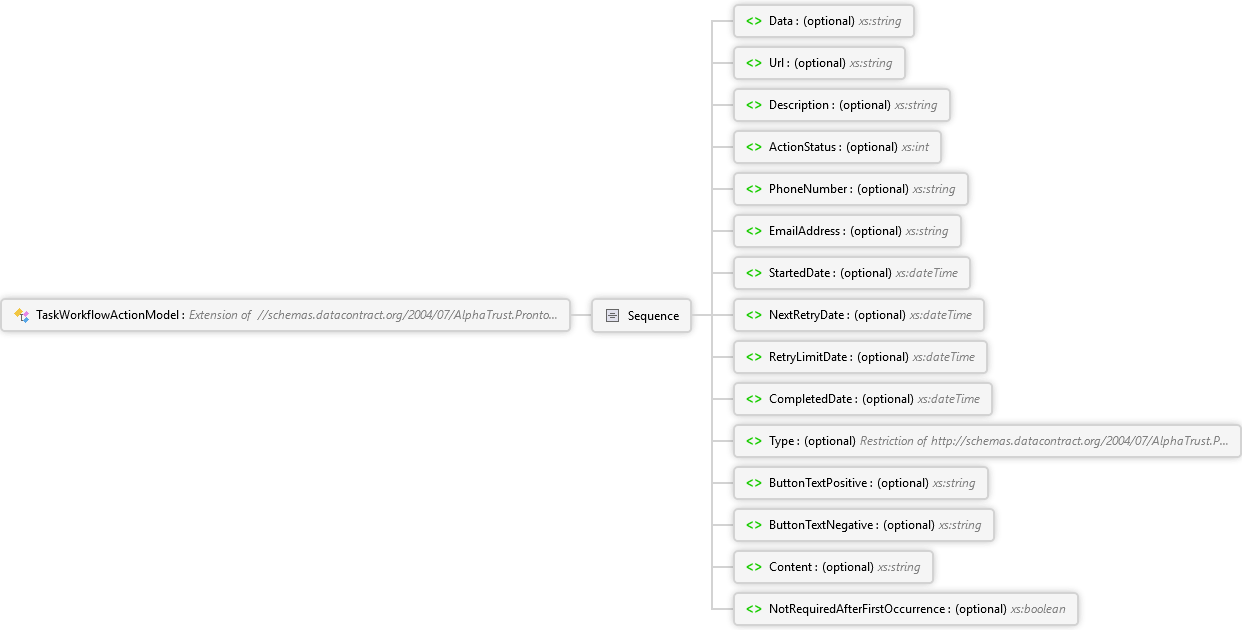

Diagram

Overview

TaskWorkflowActionModel Extension of Action Complex Type

Sequence

Data optional xs:string

Url optional xs:string

Description optional xs:string

ActionStatus optional xs:int

PhoneNumber optional xs:string

EmailAddress optional xs:string

StartedDate optional xs:dateTime

NextRetryDate optional xs:dateTime

RetryLimitDate optional xs:dateTime

CompletedDate optional xs:dateTime

Type optional Option.TaskActionTypes Simple Type

ButtonTextPositive optional xs:string

ButtonTextNegative optional xs:string

Content optional xs:string

NotRequiredAfterFirstOccurrence optional xs:boolean

Used By

TaskWorkflowActionModel Element
TaskWorkflowActionModel Element

Source

<xs:complexType name="TaskWorkflowActionModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexContent mixed="false">
    <xs:extension base="q16:Action" xmlns:q16="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Workflow">
      <xs:sequence>
        <xs:element minOccurs="0" name="Type" type="q17:Option.TaskActionTypes" xmlns:q17="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
        <xs:element minOccurs="0" name="ButtonTextPositive" nillable="true" type="xs:string" />
        <xs:element minOccurs="0" name="ButtonTextNegative" nillable="true" type="xs:string" />
        <xs:element minOccurs="0" name="Content" nillable="true" type="xs:string" />
        <xs:element minOccurs="0" name="NotRequiredAfterFirstOccurrence" type="xs:boolean" />
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
