FileAttachmentDetailsModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.FileAttachment

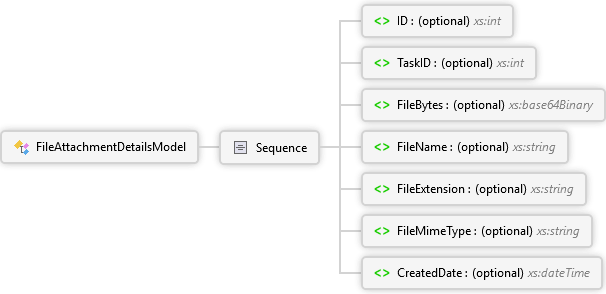

Diagram

Overview

FileAttachmentDetailsModel

Sequence

ID optional xs:int

TaskID optional xs:int

FileBytes optional xs:base64Binary

FileName optional xs:string

FileExtension optional xs:string

FileMimeType optional xs:string

CreatedDate optional xs:dateTime

Used By

FileAttachmentDetailsModel Element
FileAttachmentDetailsModel Element

Source

<xs:complexType name="FileAttachmentDetailsModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ID" type="xs:int" />
    <xs:element minOccurs="0" name="TaskID" type="xs:int" />
    <xs:element minOccurs="0" name="FileBytes" nillable="true" type="xs:base64Binary" />
    <xs:element minOccurs="0" name="FileName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FileExtension" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FileMimeType" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="CreatedDate" type="xs:dateTime" />
  </xs:sequence>
</xs:complexType>
