GetWorkflows Element

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

GetWorkflows Element

Collapse All

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc : GetWorkflows Element

Namespace

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

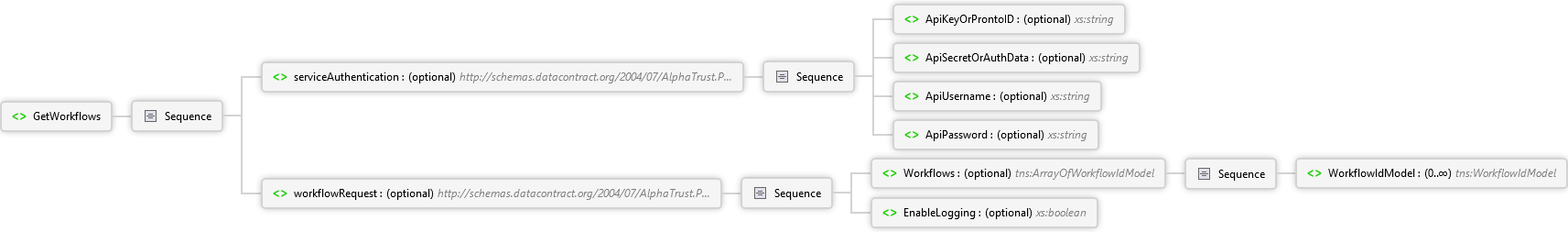

Diagram

Overview

Sequence

serviceAuthentication optional ServiceAuthenticationModel Complex Type

Sequence

ApiKeyOrProntoID optional xs:string

ApiSecretOrAuthData optional xs:string

ApiUsername optional xs:string

ApiPassword optional xs:string

workflowRequest optional WorkflowRequestModel Complex Type

Sequence

Workflows optional ArrayOfWorkflowIdModel Complex Type

Sequence

WorkflowIdModel 0..∞ WorkflowIdModel Complex Type

Sequence

ID optional guid Simple Type

DocumentUploads optional ArrayOfWorkflowDocumentModel Complex Type

Sequence

WorkflowDocumentModel 0..∞ WorkflowDocumentModel Complex Type

Sequence

ID optional guid Simple Type

FileBytes optional xs:base64Binary

EnableLogging optional xs:boolean

Source

<xs:element name="GetWorkflows" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q168:ServiceAuthenticationModel" xmlns:q168="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="workflowRequest" nillable="true" type="q169:WorkflowRequestModel" xmlns:q169="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.WorkflowDesigner.Workflow" />
    </xs:sequence>
  </xs:complexType>
</xs:element>

See Also

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
