GetWorkflowsList Element

Namespace

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

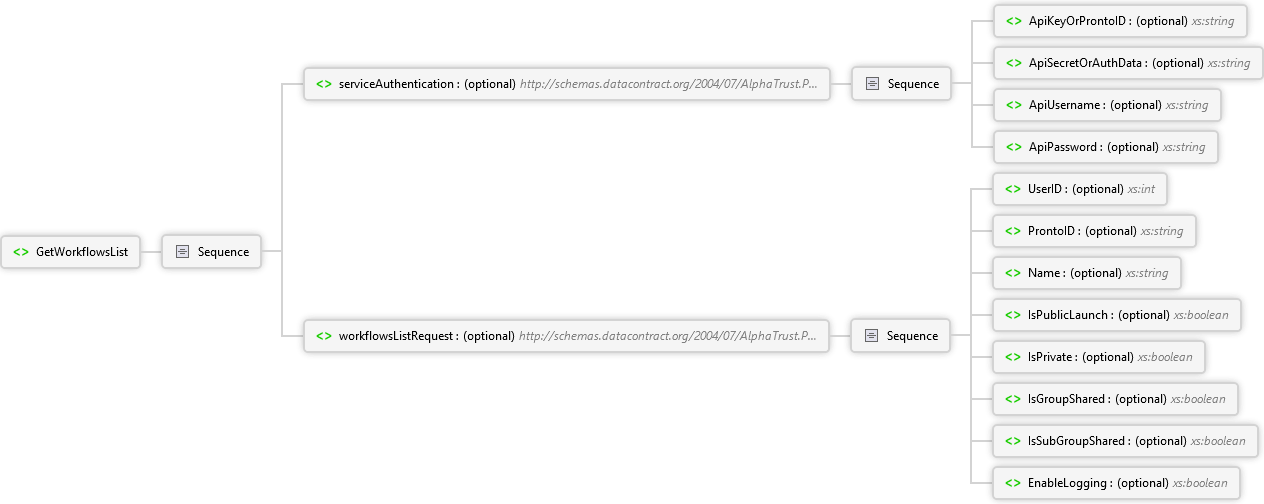

Diagram

Overview

GetWorkflowsList

Sequence

serviceAuthentication optional ServiceAuthenticationModel Complex Type

Sequence

ApiKeyOrProntoID optional xs:string

ApiSecretOrAuthData optional xs:string

ApiUsername optional xs:string

ApiPassword optional xs:string

workflowsListRequest optional WorkflowListRequestModel Complex Type

Sequence

UserID optional xs:int

ProntoID optional xs:string

Name optional xs:string

IsPublicLaunch optional xs:boolean

IsPrivate optional xs:boolean

IsGroupShared optional xs:boolean

IsSubGroupShared optional xs:boolean

EnableLogging optional xs:boolean

Source

<xs:element name="GetWorkflowsList" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q171:ServiceAuthenticationModel" xmlns:q171="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="workflowsListRequest" nillable="true" type="q172:WorkflowListRequestModel" xmlns:q172="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.WorkflowDesigner.Workflow" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
