ArrayOfDocumentWorkflowActionModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

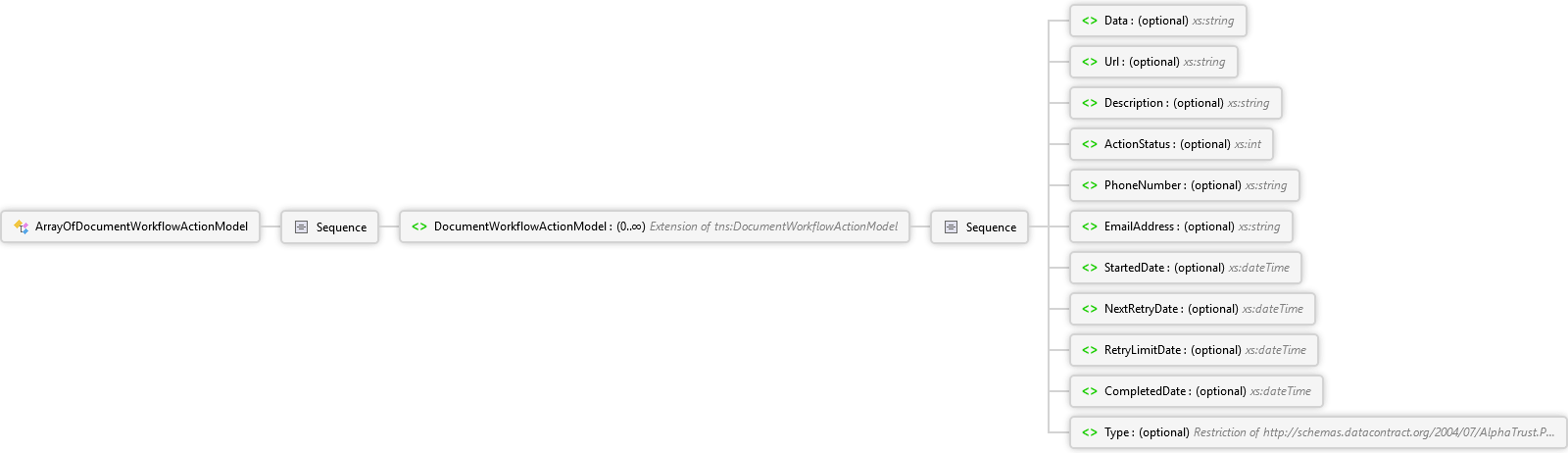

Diagram

Overview

ArrayOfDocumentWorkflowActionModel

Sequence

DocumentWorkflowActionModel 0..∞ DocumentWorkflowActionModel Complex Type

Sequence

Data optional xs:string

Url optional xs:string

Description optional xs:string

ActionStatus optional xs:int

PhoneNumber optional xs:string

EmailAddress optional xs:string

StartedDate optional xs:dateTime

NextRetryDate optional xs:dateTime

RetryLimitDate optional xs:dateTime

CompletedDate optional xs:dateTime

Type optional Option.DocumentActionTypes Simple Type

Used By

ArrayOfDocumentWorkflowActionModel Element
WorkflowActions Element
WorkflowActions Element

Source

<xs:complexType name="ArrayOfDocumentWorkflowActionModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" maxOccurs="unbounded" name="DocumentWorkflowActionModel" nillable="true" type="tns:DocumentWorkflowActionModel" />
  </xs:sequence>
</xs:complexType>
