DocumentLaunchDetails Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

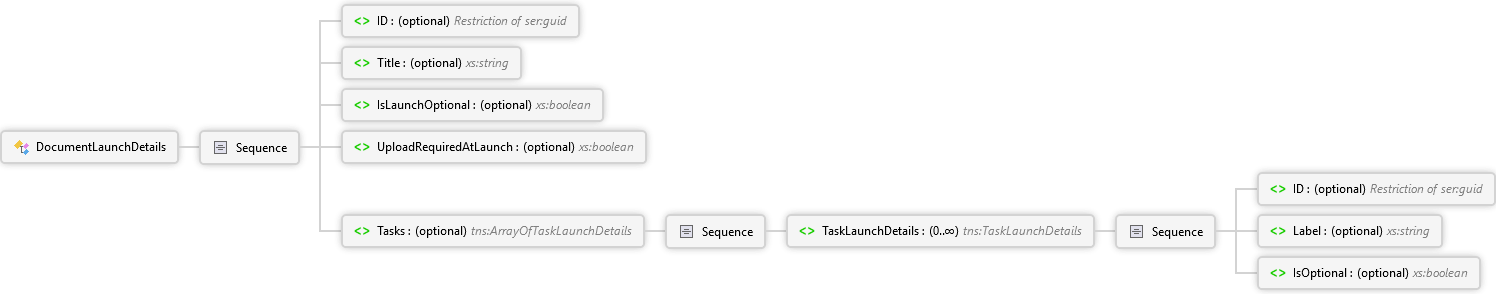

Diagram

Overview

DocumentLaunchDetails

Sequence

ID optional guid Simple Type

Title optional xs:string

IsLaunchOptional optional xs:boolean

UploadRequiredAtLaunch optional xs:boolean

Tasks optional ArrayOfTaskLaunchDetails Complex Type

Sequence

TaskLaunchDetails 0..∞ TaskLaunchDetails Complex Type

Sequence

ID optional guid Simple Type

Label optional xs:string

IsOptional optional xs:boolean

Used By

DocumentLaunchDetails Element
DocumentLaunchDetails Element

Source

<xs:complexType name="DocumentLaunchDetails" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ID" type="ser:guid" />
    <xs:element minOccurs="0" name="Title" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="IsLaunchOptional" type="xs:boolean" />
    <xs:element minOccurs="0" name="UploadRequiredAtLaunch" type="xs:boolean" />
    <xs:element minOccurs="0" name="Tasks" nillable="true" type="tns:ArrayOfTaskLaunchDetails" />
  </xs:sequence>
</xs:complexType>
