DocumentPdfDataFileDetailsRequestModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

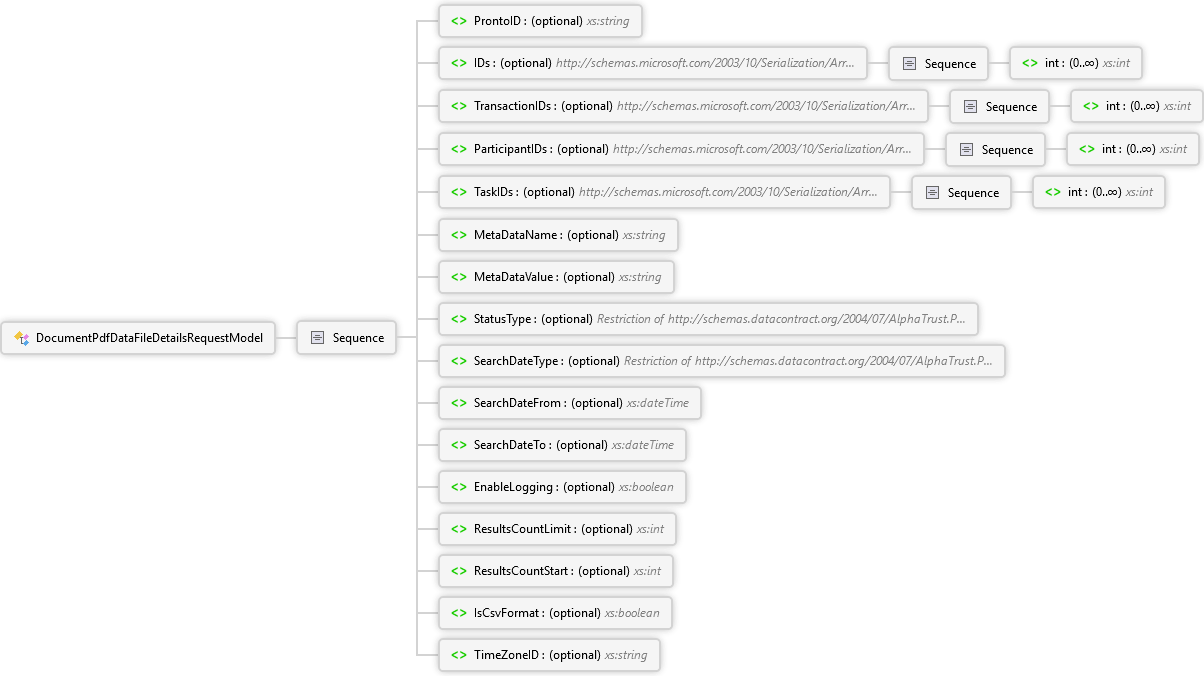

Diagram

Overview

DocumentPdfDataFileDetailsRequestModel

Sequence

ProntoID optional xs:string

IDs optional ArrayOfint Complex Type

Sequence

int 0..∞ xs:int

TransactionIDs optional ArrayOfint Complex Type

Sequence

int 0..∞ xs:int

ParticipantIDs optional ArrayOfint Complex Type

Sequence

int 0..∞ xs:int

TaskIDs optional ArrayOfint Complex Type

Sequence

int 0..∞ xs:int

MetaDataName optional xs:string

MetaDataValue optional xs:string

StatusType optional Option.TransactionStatusTypes Simple Type

SearchDateType optional Option.TransactionSearchDateTypes Simple Type

SearchDateFrom optional xs:dateTime

SearchDateTo optional xs:dateTime

EnableLogging optional xs:boolean

ResultsCountLimit optional xs:int

ResultsCountStart optional xs:int

IsCsvFormat optional xs:boolean

TimeZoneID optional xs:string

Used By

documentPdfDataFileDetailsRequest Element
DocumentPdfDataFileDetailsRequestModel Element

Source

<xs:complexType name="DocumentPdfDataFileDetailsRequestModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ProntoID" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="IDs" nillable="true" type="q46:ArrayOfint" xmlns:q46="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="TransactionIDs" nillable="true" type="q47:ArrayOfint" xmlns:q47="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="ParticipantIDs" nillable="true" type="q48:ArrayOfint" xmlns:q48="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="TaskIDs" nillable="true" type="q49:ArrayOfint" xmlns:q49="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="MetaDataName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="MetaDataValue" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="StatusType" type="q50:Option.TransactionStatusTypes" xmlns:q50="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchDateType" type="q51:Option.TransactionSearchDateTypes" xmlns:q51="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchDateFrom" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="SearchDateTo" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="EnableLogging" type="xs:boolean" />
    <xs:element minOccurs="0" name="ResultsCountLimit" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ResultsCountStart" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="IsCsvFormat" type="xs:boolean" />
    <xs:element minOccurs="0" name="TimeZoneID" nillable="true" type="xs:string" />
  </xs:sequence>
</xs:complexType>
