TextStampModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

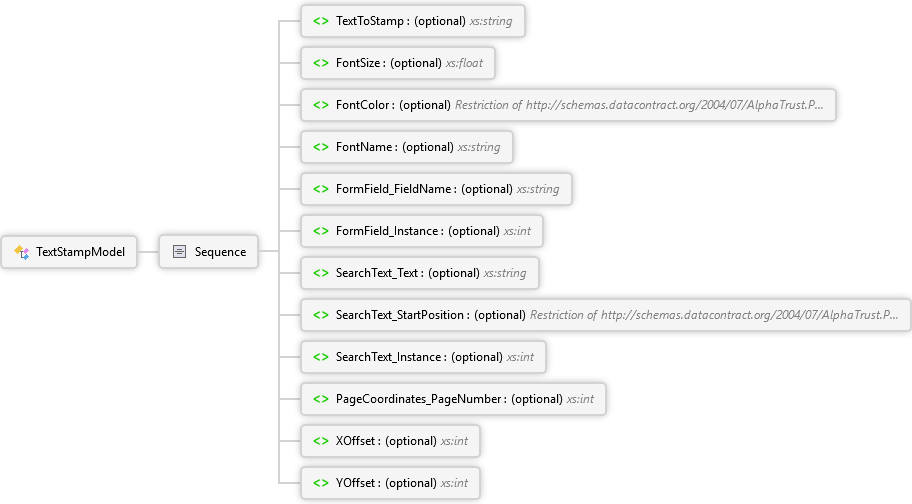

Diagram

Overview

TextStampModel

Sequence

TextToStamp optional xs:string

FontSize optional xs:float

FontColor optional Option.TextStampFontColorTypes Simple Type

FontName optional xs:string

FormField_FieldName optional xs:string

FormField_Instance optional xs:int

SearchText_Text optional xs:string

SearchText_StartPosition optional Option.PlacementPositionTypes Simple Type

SearchText_Instance optional xs:int

PageCoordinates_PageNumber optional xs:int

XOffset optional xs:int

YOffset optional xs:int

Used By

TextStampModel Element
TextStampModel Element

Source

<xs:complexType name="TextStampModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="TextToStamp" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FontSize" type="xs:float" />
    <xs:element minOccurs="0" name="FontColor" type="q17:Option.TextStampFontColorTypes" xmlns:q17="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="FontName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FormField_FieldName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="FormField_Instance" type="xs:int" />
    <xs:element minOccurs="0" name="SearchText_Text" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SearchText_StartPosition" type="q18:Option.PlacementPositionTypes" xmlns:q18="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchText_Instance" type="xs:int" />
    <xs:element minOccurs="0" name="PageCoordinates_PageNumber" type="xs:int" />
    <xs:element minOccurs="0" name="XOffset" type="xs:int" />
    <xs:element minOccurs="0" name="YOffset" type="xs:int" />
  </xs:sequence>
</xs:complexType>
