UpdateDocumentsCompleted Element

Namespace

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

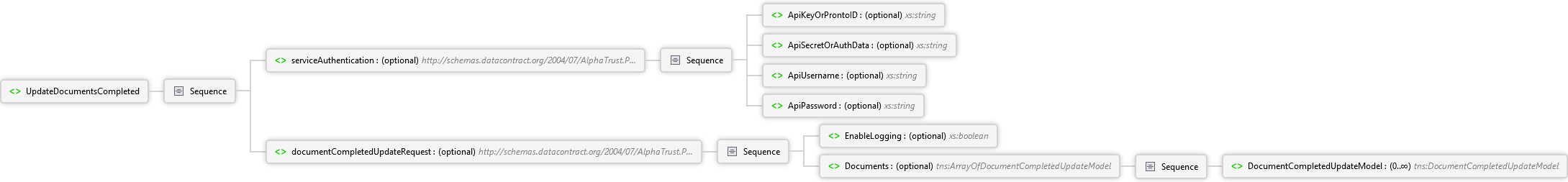

Diagram

Overview

UpdateDocumentsCompleted

Sequence

serviceAuthentication optional ServiceAuthenticationModel Complex Type

Sequence

ApiKeyOrProntoID optional xs:string

ApiSecretOrAuthData optional xs:string

ApiUsername optional xs:string

ApiPassword optional xs:string

documentCompletedUpdateRequest optional DocumentCompletedUpdateRequestModel Complex Type

Sequence

EnableLogging optional xs:boolean

Documents optional ArrayOfDocumentCompletedUpdateModel Complex Type

Sequence

DocumentCompletedUpdateModel 0..∞ DocumentCompletedUpdateModel Complex Type

Sequence

ID optional xs:int

Title optional xs:string

UserFileNameType optional Option.DocumentUserFileNameTypes Simple Type

UserFileName optional xs:string

DeleteDate optional xs:dateTime

Source

<xs:element name="UpdateDocumentsCompleted" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q78:ServiceAuthenticationModel" xmlns:q78="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="documentCompletedUpdateRequest" nillable="true" type="q79:DocumentCompletedUpdateRequestModel" xmlns:q79="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
