UserDetailsRequestModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.User

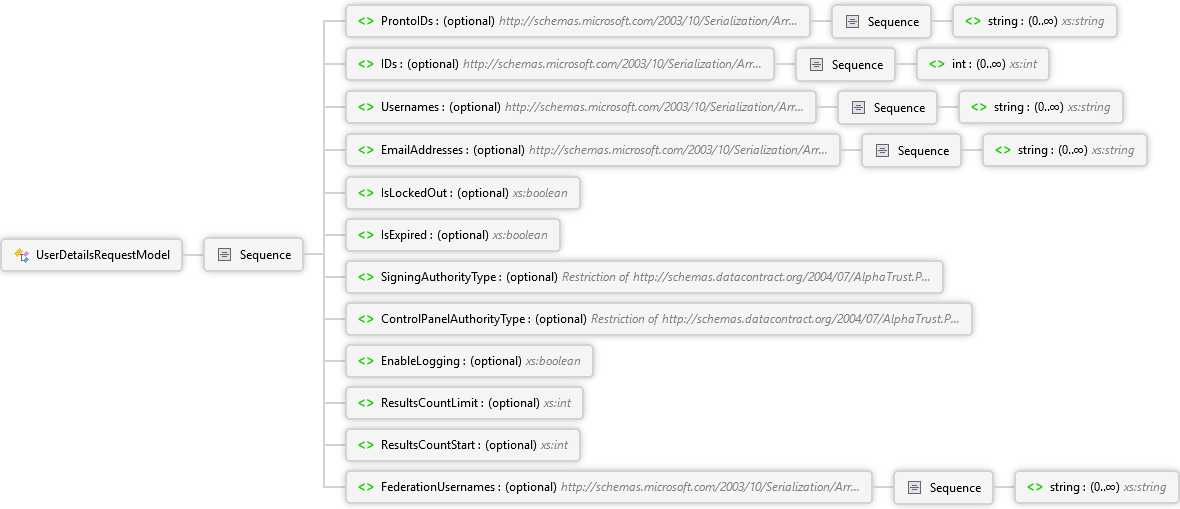

Diagram

Overview

UserDetailsRequestModel

Sequence

ProntoIDs optional ArrayOfstring Complex Type

Sequence

string 0..∞ xs:string

IDs optional ArrayOfint Complex Type

Sequence

int 0..∞ xs:int

Usernames optional ArrayOfstring Complex Type

Sequence

string 0..∞ xs:string

EmailAddresses optional ArrayOfstring Complex Type

Sequence

string 0..∞ xs:string

IsLockedOut optional xs:boolean

IsExpired optional xs:boolean

SigningAuthorityType optional Option.UserProcessAuthorityTypes Simple Type

ControlPanelAuthorityType optional Option.UserControlPanelAuthorityTypes Simple Type

EnableLogging optional xs:boolean

ResultsCountLimit optional xs:int

ResultsCountStart optional xs:int

FederationUsernames optional ArrayOfstring Complex Type

Sequence

string 0..∞ xs:string

Used By

userDetailsRequestModel Element
UserDetailsRequestModel Element

Source

<xs:complexType name="UserDetailsRequestModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ProntoIDs" nillable="true" type="q1:ArrayOfstring" xmlns:q1="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="IDs" nillable="true" type="q2:ArrayOfint" xmlns:q2="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="Usernames" nillable="true" type="q3:ArrayOfstring" xmlns:q3="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="EmailAddresses" nillable="true" type="q4:ArrayOfstring" xmlns:q4="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="IsLockedOut" nillable="true" type="xs:boolean" />
    <xs:element minOccurs="0" name="IsExpired" nillable="true" type="xs:boolean" />
    <xs:element minOccurs="0" name="SigningAuthorityType" nillable="true" type="q5:Option.UserProcessAuthorityTypes" xmlns:q5="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="ControlPanelAuthorityType" nillable="true" type="q6:Option.UserControlPanelAuthorityTypes" xmlns:q6="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="EnableLogging" type="xs:boolean" />
    <xs:element minOccurs="0" name="ResultsCountLimit" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ResultsCountStart" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="FederationUsernames" nillable="true" type="q7:ArrayOfstring" xmlns:q7="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
  </xs:sequence>
</xs:complexType>
