User
UserUpdateModel Complex Type
User : UserUpdateModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.User

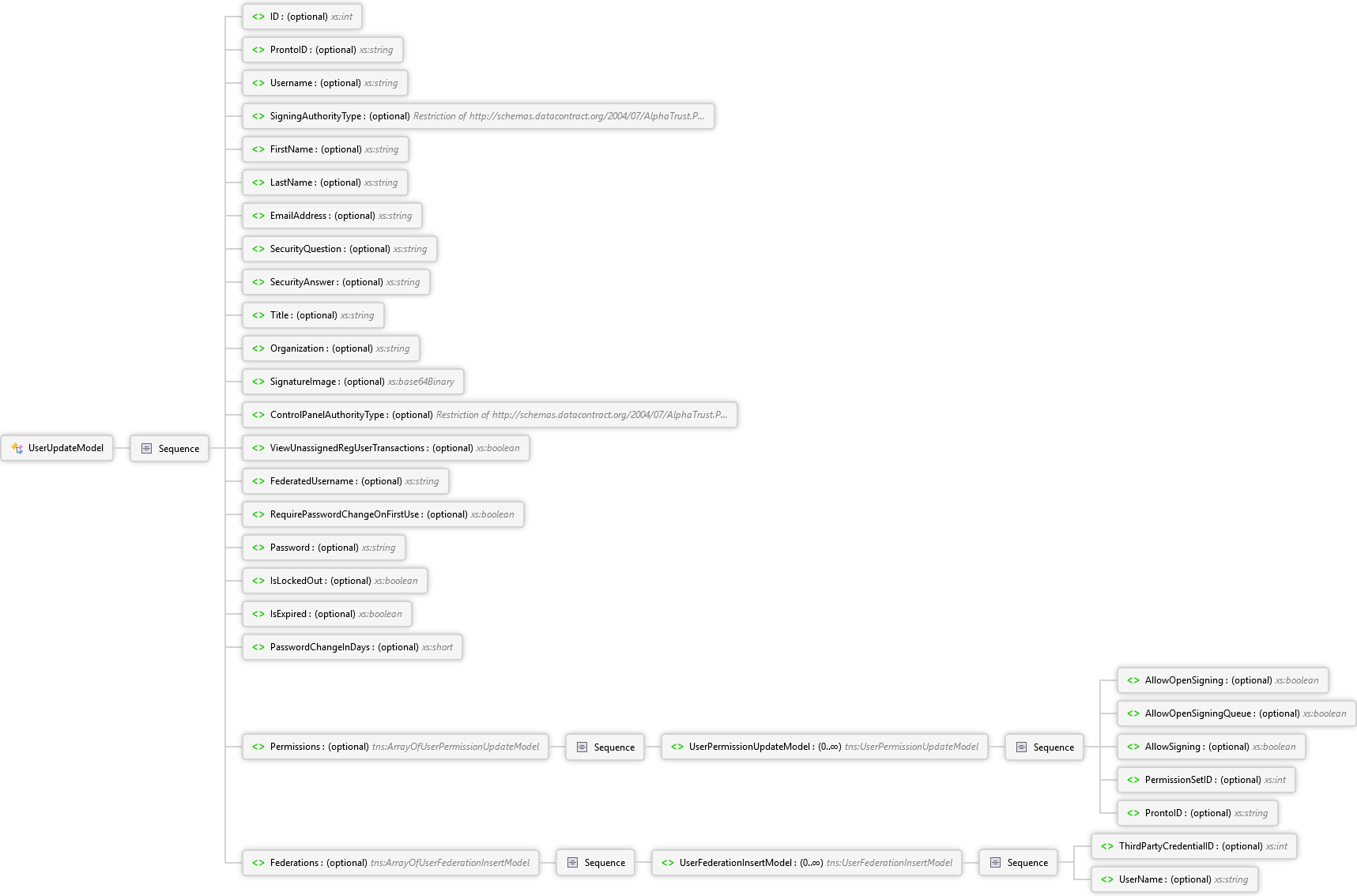

Diagram
UserName Element ThirdPartyCredentialID Element Sequence UserFederationInsertModel Element Sequence Federations Element ProntoID Element PermissionSetID Element AllowSigning Element AllowOpenSigningQueue Element AllowOpenSigning Element Sequence UserPermissionUpdateModel Element Sequence Permissions Element PasswordChangeInDays Element IsExpired Element IsLockedOut Element Password Element RequirePasswordChangeOnFirstUse Element FederatedUsername Element ViewUnassignedRegUserTransactions Element ControlPanelAuthorityType Element SignatureImage Element Organization Element Title Element SecurityAnswer Element SecurityQuestion Element EmailAddress Element LastName Element FirstName Element SigningAuthorityType Element Username Element ProntoID Element ID Element Sequence UserUpdateModel Complex Type
Overview
UserUpdateModel
Sequence
ID optional xs:int
ProntoID optional xs:string
Username optional xs:string
SigningAuthorityType optional Option.UserProcessAuthorityTypes Simple Type
FirstName optional xs:string
LastName optional xs:string
EmailAddress optional xs:string
SecurityQuestion optional xs:string
SecurityAnswer optional xs:string
Title optional xs:string
Organization optional xs:string
SignatureImage optional xs:base64Binary
ControlPanelAuthorityType optional Option.UserControlPanelAuthorityTypes Simple Type
ViewUnassignedRegUserTransactions optional xs:boolean
FederatedUsername optional xs:string
RequirePasswordChangeOnFirstUse optional xs:boolean
Password optional xs:string
IsLockedOut optional xs:boolean
IsExpired optional xs:boolean
PasswordChangeInDays optional xs:short
Permissions optional ArrayOfUserPermissionUpdateModel Complex Type
Sequence
UserPermissionUpdateModel 0..∞ UserPermissionUpdateModel Complex Type
Sequence
AllowOpenSigning optional xs:boolean
AllowOpenSigningQueue optional xs:boolean
AllowSigning optional xs:boolean
PermissionSetID optional xs:int
ProntoID optional xs:string
Federations optional ArrayOfUserFederationInsertModel Complex Type
Sequence
Used By
UserUpdateModel Element
UserUpdateModel Element
Source
<xs:complexType name="UserUpdateModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ID" type="xs:int" />
    <xs:element minOccurs="0" name="ProntoID" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Username" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SigningAuthorityType" type="q17:Option.UserProcessAuthorityTypes" xmlns:q17="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="FirstName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="LastName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="EmailAddress" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SecurityQuestion" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SecurityAnswer" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Title" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Organization" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="SignatureImage" nillable="true" type="xs:base64Binary" />
    <xs:element minOccurs="0" name="ControlPanelAuthorityType" type="q18:Option.UserControlPanelAuthorityTypes" xmlns:q18="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="ViewUnassignedRegUserTransactions" type="xs:boolean" />
    <xs:element minOccurs="0" name="FederatedUsername" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="RequirePasswordChangeOnFirstUse" type="xs:boolean" />
    <xs:element minOccurs="0" name="Password" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="IsLockedOut" type="xs:boolean" />
    <xs:element minOccurs="0" name="IsExpired" type="xs:boolean" />
    <xs:element minOccurs="0" name="PasswordChangeInDays" nillable="true" type="xs:short" />
    <xs:element minOccurs="0" name="Permissions" nillable="true" type="tns:ArrayOfUserPermissionUpdateModel" />
    <xs:element minOccurs="0" name="Federations" nillable="true" type="tns:ArrayOfUserFederationInsertModel" />
  </xs:sequence>
</xs:complexType>
See Also
User
