UpdateParticipantWorkflowActionStatus Element

Namespace

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

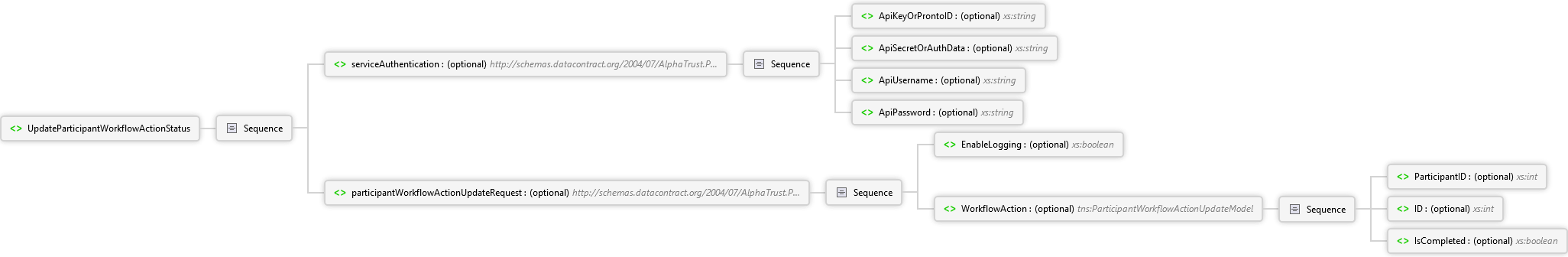

Diagram

Overview

UpdateParticipantWorkflowActionStatus

Sequence

serviceAuthentication optional ServiceAuthenticationModel Complex Type

Sequence

ApiKeyOrProntoID optional xs:string

ApiSecretOrAuthData optional xs:string

ApiUsername optional xs:string

ApiPassword optional xs:string

participantWorkflowActionUpdateRequest optional ParticipantWorkflowActionUpdateRequestModel Complex Type

Sequence

EnableLogging optional xs:boolean

WorkflowAction optional ParticipantWorkflowActionUpdateModel Complex Type

Sequence

ParticipantID optional xs:int

ID optional xs:int

IsCompleted optional xs:boolean

Source

<xs:element name="UpdateParticipantWorkflowActionStatus" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q54:ServiceAuthenticationModel" xmlns:q54="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="participantWorkflowActionUpdateRequest" nillable="true" type="q55:ParticipantWorkflowActionUpdateRequestModel" xmlns:q55="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Participant" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
