UpdateTasks Element

Namespace

urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

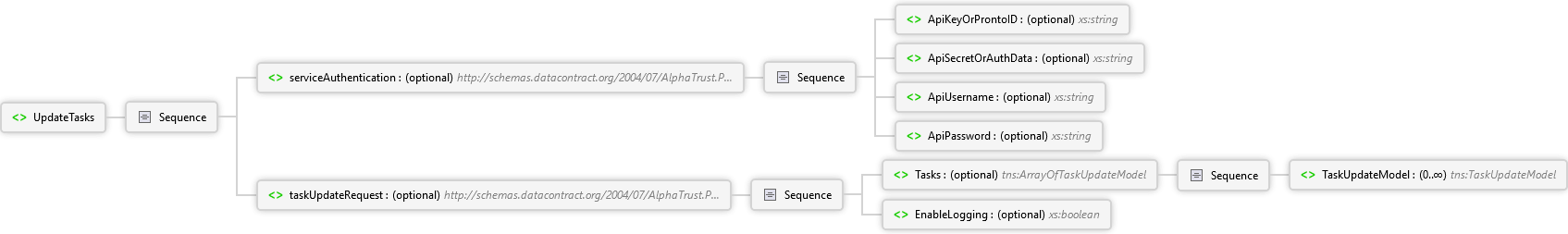

Diagram

Overview

UpdateTasks

Sequence

serviceAuthentication optional ServiceAuthenticationModel Complex Type

Sequence

ApiKeyOrProntoID optional xs:string

ApiSecretOrAuthData optional xs:string

ApiUsername optional xs:string

ApiPassword optional xs:string

taskUpdateRequest optional TaskUpdateRequestModel Complex Type

Sequence

Tasks optional ArrayOfTaskUpdateModel Complex Type

Sequence

TaskUpdateModel 0..∞ TaskUpdateModel Complex Type

Sequence

ID optional xs:int

ParticipantID optional xs:int

EnableLogging optional xs:boolean

Source

<xs:element name="UpdateTasks" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q120:ServiceAuthenticationModel" xmlns:q120="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="taskUpdateRequest" nillable="true" type="q121:TaskUpdateRequestModel" xmlns:q121="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
