AuditReportDetailsServiceReturnModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

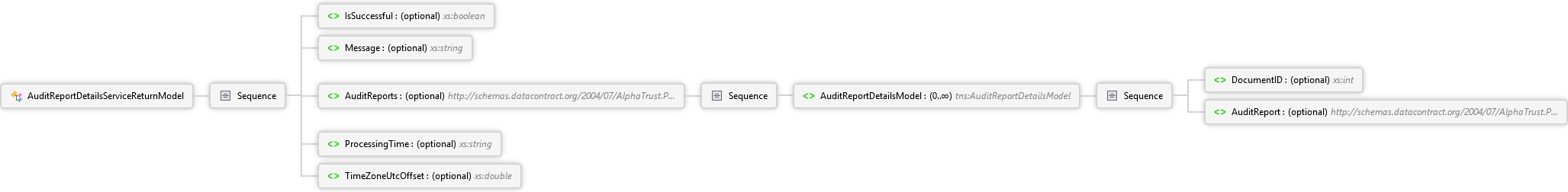

Diagram

Overview

AuditReportDetailsServiceReturnModel

Sequence

IsSuccessful optional xs:boolean

Message optional xs:string

AuditReports optional ArrayOfAuditReportDetailsModel Complex Type

Sequence

AuditReportDetailsModel 0..∞ AuditReportDetailsModel Complex Type

Sequence

DocumentID optional xs:int

AuditReport optional DocumentFileModel Complex Type

Sequence

FileBytes optional xs:base64Binary

FileName optional xs:string

MimeType optional xs:string

ProcessingTime optional xs:string

TimeZoneUtcOffset optional xs:double

Used By

GetAuditReportsResult Element
AuditReportDetailsServiceReturnModel Element

Source

<xs:complexType name="AuditReportDetailsServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="AuditReports" nillable="true" type="q17:ArrayOfAuditReportDetailsModel" xmlns:q17="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.AuditReport" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
