GroupHtmlWrapperServiceReturnModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

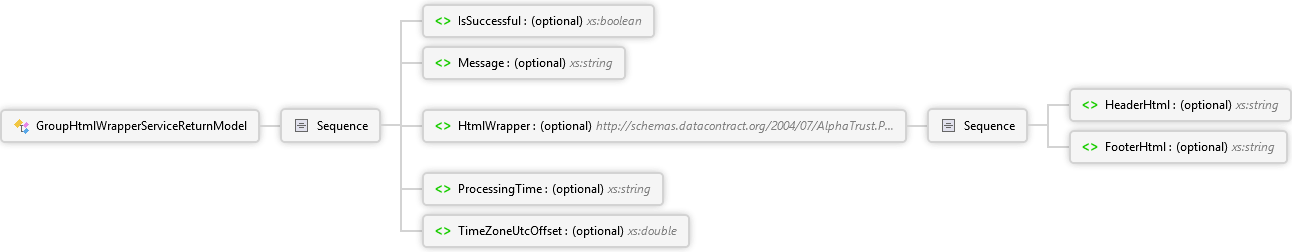

Diagram

Overview

GroupHtmlWrapperServiceReturnModel

Sequence

IsSuccessful optional xs:boolean

Message optional xs:string

HtmlWrapper optional GroupHtmlWrapperModel Complex Type

Sequence

HeaderHtml optional xs:string

FooterHtml optional xs:string

ProcessingTime optional xs:string

TimeZoneUtcOffset optional xs:double

Used By

GetProcessHtmlWrapperResult Element
GroupHtmlWrapperServiceReturnModel Element

Source

<xs:complexType name="GroupHtmlWrapperServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="HtmlWrapper" nillable="true" type="q25:GroupHtmlWrapperModel" xmlns:q25="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Group" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
