TaskWorkflowActionServiceReturnModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

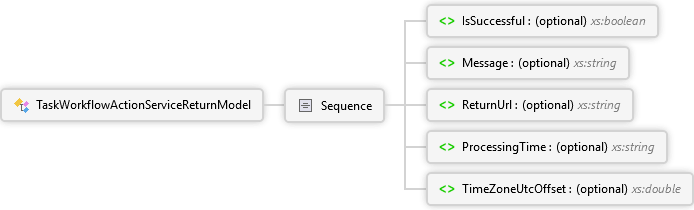

Diagram

Overview

TaskWorkflowActionServiceReturnModel

Sequence

IsSuccessful optional xs:boolean

Message optional xs:string

ReturnUrl optional xs:string

ProcessingTime optional xs:string

TimeZoneUtcOffset optional xs:double

Used By

UpdateTaskWorkflowActionStatusResult Element
TaskWorkflowActionServiceReturnModel Element

Source

<xs:complexType name="TaskWorkflowActionServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="ReturnUrl" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
