TransactionEventsServiceReturnModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

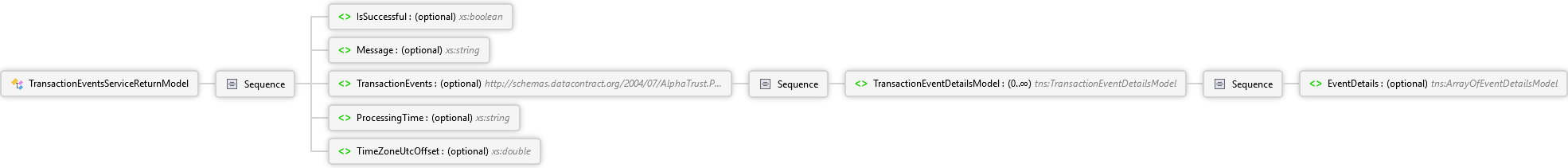

Diagram

Overview

TransactionEventsServiceReturnModel

Sequence

IsSuccessful optional xs:boolean

Message optional xs:string

TransactionEvents optional ArrayOfTransactionEventDetailsModel Complex Type

Sequence

TransactionEventDetailsModel 0..∞ TransactionEventDetailsModel Complex Type

Sequence

EventDetails optional ArrayOfEventDetailsModel Complex Type

Sequence

EventDetailsModel 0..∞ EventDetailsModel Complex Type

Sequence

ID optional xs:int

TransactionID optional xs:int

ParticipantID optional xs:int

DocumentID optional xs:int

TaskID optional xs:int

Type optional EventHistoryManager.EventTypes Simple Type

Description optional xs:string

CreatedDate optional xs:dateTime

ProcessingTime optional xs:string

TimeZoneUtcOffset optional xs:double

Used By

GetTransactionEventsResult Element
TransactionEventsServiceReturnModel Element

Source

<xs:complexType name="TransactionEventsServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TransactionEvents" nillable="true" type="q7:ArrayOfTransactionEventDetailsModel" xmlns:q7="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
