Transaction
TransactionDetailsRequestModel Complex Type
Transaction : TransactionDetailsRequestModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

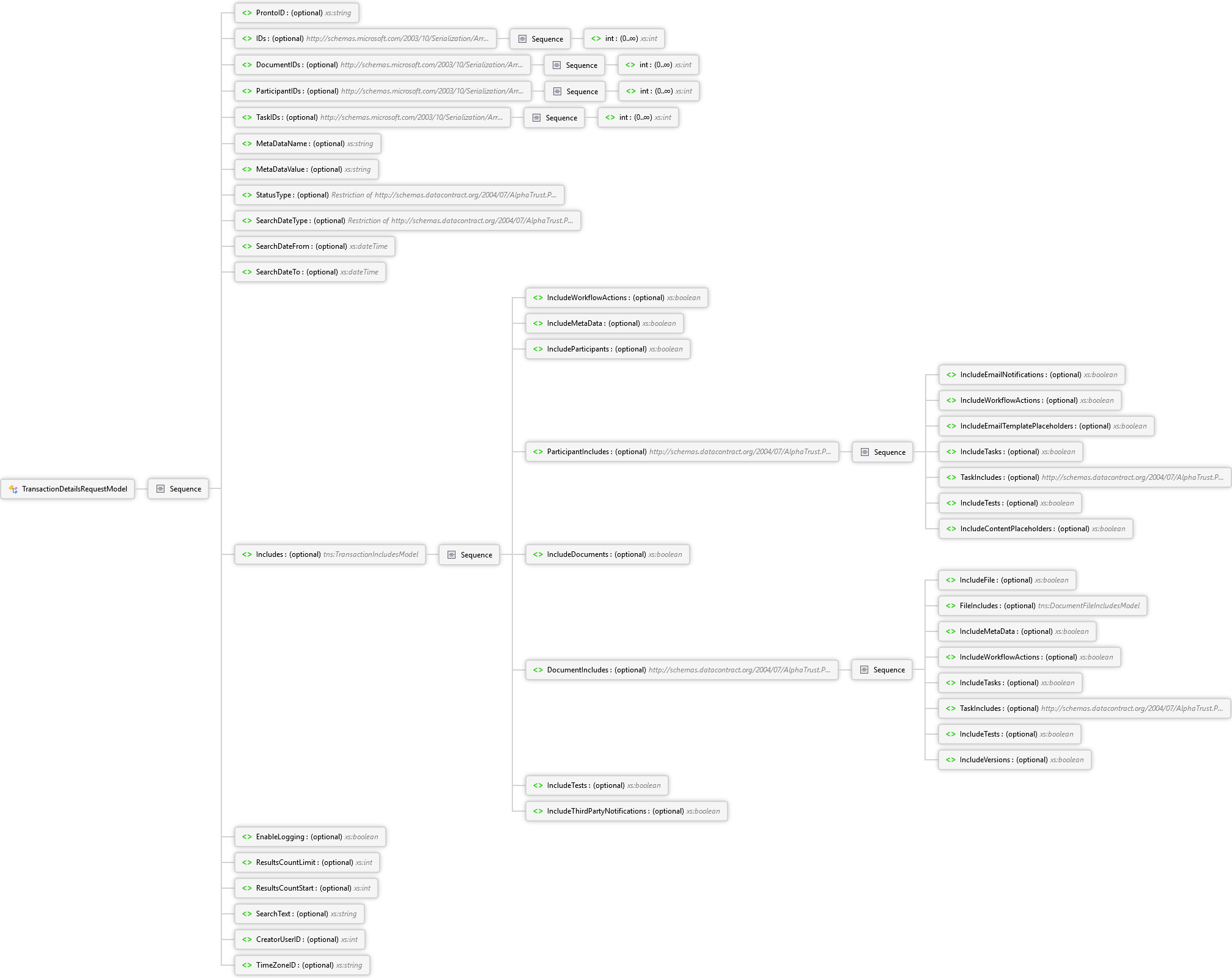

Diagram
TimeZoneID Element CreatorUserID Element SearchText Element ResultsCountStart Element ResultsCountLimit Element EnableLogging Element IncludeThirdPartyNotifications Element IncludeTests Element IncludeVersions Element IncludeTests Element TaskIncludes Element IncludeTasks Element IncludeWorkflowActions Element IncludeMetaData Element FileIncludes Element IncludeFile Element Sequence DocumentIncludes Element IncludeDocuments Element IncludeContentPlaceholders Element IncludeTests Element TaskIncludes Element IncludeTasks Element IncludeEmailTemplatePlaceholders Element IncludeWorkflowActions Element IncludeEmailNotifications Element Sequence ParticipantIncludes Element IncludeParticipants Element IncludeMetaData Element IncludeWorkflowActions Element Sequence Includes Element SearchDateTo Element SearchDateFrom Element SearchDateType Element StatusType Element MetaDataValue Element MetaDataName Element int Element Sequence TaskIDs Element int Element Sequence ParticipantIDs Element int Element Sequence DocumentIDs Element int Element Sequence IDs Element ProntoID Element Sequence TransactionDetailsRequestModel Complex Type
Overview
TransactionDetailsRequestModel
Sequence
ProntoID optional xs:string
IDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
DocumentIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
ParticipantIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
TaskIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
MetaDataName optional xs:string
MetaDataValue optional xs:string
StatusType optional Option.TransactionStatusTypes Simple Type
SearchDateType optional Option.TransactionSearchDateTypes Simple Type
SearchDateFrom optional xs:dateTime
SearchDateTo optional xs:dateTime
Includes optional TransactionIncludesModel Complex Type
Sequence
IncludeWorkflowActions optional xs:boolean
IncludeMetaData optional xs:boolean
IncludeParticipants optional xs:boolean
ParticipantIncludes optional ParticipantIncludesModel Complex Type
Sequence
IncludeEmailNotifications optional xs:boolean
IncludeWorkflowActions optional xs:boolean
IncludeEmailTemplatePlaceholders optional xs:boolean
IncludeTasks optional xs:boolean
TaskIncludes optional TaskIncludesModel Complex Type
Sequence
IncludeWorkflowActions optional xs:boolean
IncludeFileAttachments optional xs:boolean
IncludeTests optional xs:boolean
IncludeSignatureBlock optional xs:boolean
IncludeFileAttachmentsInfoOnly optional xs:boolean
IncludeTests optional xs:boolean
IncludeContentPlaceholders optional xs:boolean
IncludeDocuments optional xs:boolean
DocumentIncludes optional DocumentIncludesModel Complex Type
Sequence
IncludeFile optional xs:boolean
FileIncludes optional DocumentFileIncludesModel Complex Type
Sequence
IncludeNonWatermarkedVersion optional xs:boolean
IncludePdfStampedWithCopyWatermark optional xs:boolean
IncludeFileUnlocked optional xs:boolean
IncludeOriginalSourceFile optional xs:boolean
IncludeSpecificVersion optional xs:short
IncludeMetaData optional xs:boolean
IncludeWorkflowActions optional xs:boolean
IncludeTasks optional xs:boolean
TaskIncludes optional TaskIncludesModel Complex Type
Sequence
IncludeWorkflowActions optional xs:boolean
IncludeFileAttachments optional xs:boolean
IncludeTests optional xs:boolean
IncludeSignatureBlock optional xs:boolean
IncludeFileAttachmentsInfoOnly optional xs:boolean
IncludeTests optional xs:boolean
IncludeVersions optional xs:boolean
IncludeTests optional xs:boolean
IncludeThirdPartyNotifications optional xs:boolean
EnableLogging optional xs:boolean
ResultsCountLimit optional xs:int
ResultsCountStart optional xs:int
SearchText optional xs:string
CreatorUserID optional xs:int
TimeZoneID optional xs:string
Used By
transactionDetailsRequest Element
TransactionDetailsRequestModel Element
Source
<xs:complexType name="TransactionDetailsRequestModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ProntoID" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="IDs" nillable="true" type="q1:ArrayOfint" xmlns:q1="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="DocumentIDs" nillable="true" type="q2:ArrayOfint" xmlns:q2="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="ParticipantIDs" nillable="true" type="q3:ArrayOfint" xmlns:q3="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="TaskIDs" nillable="true" type="q4:ArrayOfint" xmlns:q4="http://schemas.microsoft.com/2003/10/Serialization/Arrays" />
    <xs:element minOccurs="0" name="MetaDataName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="MetaDataValue" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="StatusType" type="q5:Option.TransactionStatusTypes" xmlns:q5="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchDateType" type="q6:Option.TransactionSearchDateTypes" xmlns:q6="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="SearchDateFrom" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="SearchDateTo" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="Includes" nillable="true" type="tns:TransactionIncludesModel" />
    <xs:element minOccurs="0" name="EnableLogging" type="xs:boolean" />
    <xs:element minOccurs="0" name="ResultsCountLimit" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ResultsCountStart" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="SearchText" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="CreatorUserID" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="TimeZoneID" nillable="true" type="xs:string" />
  </xs:sequence>
</xs:complexType>
See Also
Transaction
