urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
GetFileAttachments Element
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc : GetFileAttachments Element
Namespace urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

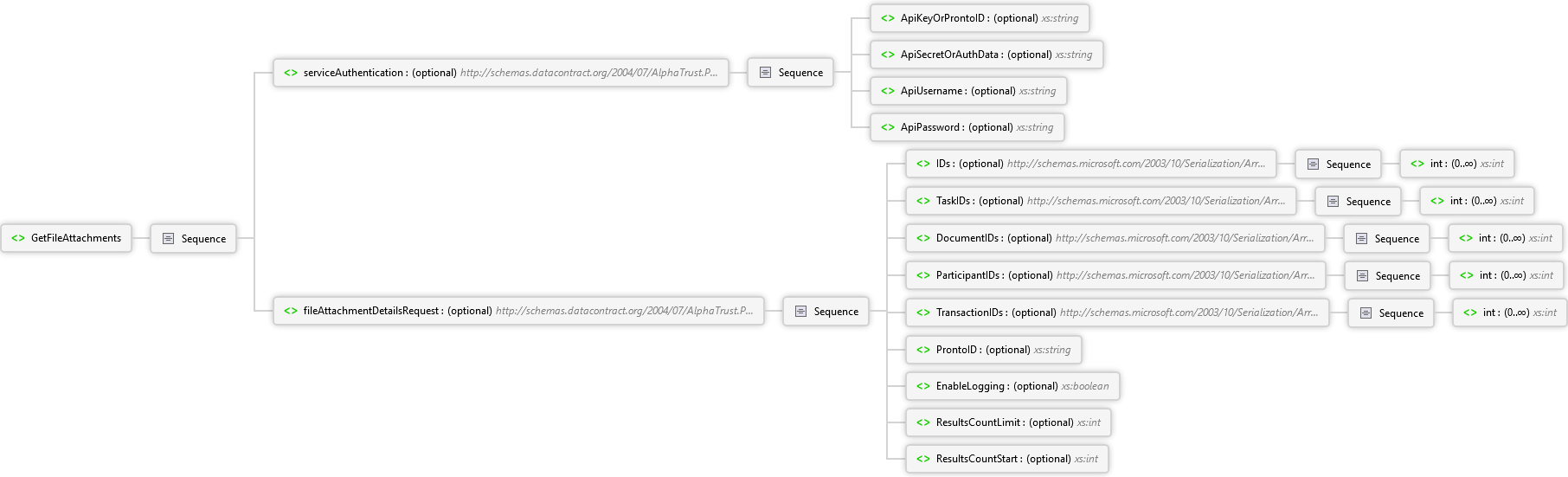

Diagram
ResultsCountStart Element ResultsCountLimit Element EnableLogging Element ProntoID Element int Element Sequence TransactionIDs Element int Element Sequence ParticipantIDs Element int Element Sequence DocumentIDs Element int Element Sequence TaskIDs Element int Element Sequence IDs Element Sequence fileAttachmentDetailsRequest Element ApiPassword Element ApiUsername Element ApiSecretOrAuthData Element ApiKeyOrProntoID Element Sequence serviceAuthentication Element Sequence GetFileAttachments Element
Overview
GetFileAttachments
Sequence
serviceAuthentication optional ServiceAuthenticationModel Complex Type
Sequence
ApiKeyOrProntoID optional xs:string
ApiSecretOrAuthData optional xs:string
ApiUsername optional xs:string
ApiPassword optional xs:string
fileAttachmentDetailsRequest optional FileAttachmentDetailsRequestModel Complex Type
Sequence
IDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
TaskIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
DocumentIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
ParticipantIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
TransactionIDs optional ArrayOfint Complex Type
Sequence
int 0..∞ xs:int
ProntoID optional xs:string
EnableLogging optional xs:boolean
ResultsCountLimit optional xs:int
ResultsCountStart optional xs:int
Source
<xs:element name="GetFileAttachments" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="serviceAuthentication" nillable="true" type="q129:ServiceAuthenticationModel" xmlns:q129="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Security" />
      <xs:element minOccurs="0" name="fileAttachmentDetailsRequest" nillable="true" type="q130:FileAttachmentDetailsRequestModel" xmlns:q130="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.FileAttachment" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
