Transaction
TransactionEvidencePackageDetailsModel Complex Type
Transaction : TransactionEvidencePackageDetailsModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

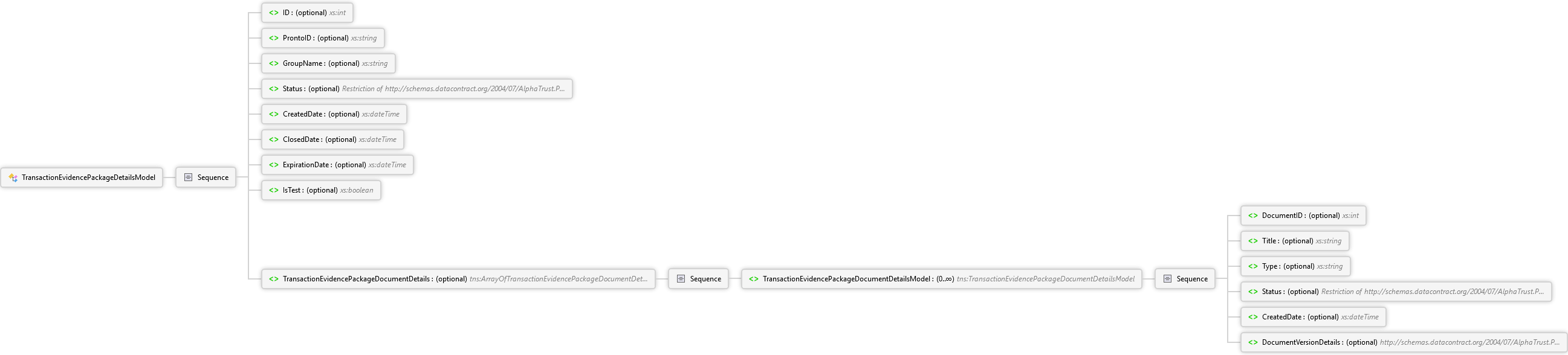

Diagram
DocumentVersionDetails Element CreatedDate Element Status Element Type Element Title Element DocumentID Element Sequence TransactionEvidencePackageDocumentDetailsModel Element Sequence TransactionEvidencePackageDocumentDetails Element IsTest Element ExpirationDate Element ClosedDate Element CreatedDate Element Status Element GroupName Element ProntoID Element ID Element Sequence TransactionEvidencePackageDetailsModel Complex Type
Overview
TransactionEvidencePackageDetailsModel
Sequence
ID optional xs:int
ProntoID optional xs:string
GroupName optional xs:string
Status optional Option.TransactionStatusTypes Simple Type
CreatedDate optional xs:dateTime
ClosedDate optional xs:dateTime
ExpirationDate optional xs:dateTime
IsTest optional xs:boolean
TransactionEvidencePackageDocumentDetails optional ArrayOfTransactionEvidencePackageDocumentDetailsModel Complex Type
Sequence
TransactionEvidencePackageDocumentDetailsModel 0..∞ TransactionEvidencePackageDocumentDetailsModel Complex Type
Sequence
DocumentID optional xs:int
Title optional xs:string
Type optional xs:string
Status optional Option.TransactionStatusTypes Simple Type
CreatedDate optional xs:dateTime
DocumentVersionDetails optional ArrayOfDocumentVersionDetailModel Complex Type
Sequence
DocumentVersionDetailModel 0..∞ DocumentVersionDetailModel Complex Type
Sequence
ID optional xs:int
DocumentID optional xs:int
Version optional xs:short
FileName optional xs:string
CreateDate optional xs:dateTime
SealedDate optional xs:dateTime
CertifiedDate optional xs:dateTime
IsSealPending optional xs:boolean
IsCertifyPending optional xs:boolean
DocumentSHA256Hash optional xs:string
VersionInfo optional xs:string
IsFinal optional xs:boolean
Used By
TransactionEvidencePackageDetailsModel Element
TransactionEvidencePackageDetails Element
Source
<xs:complexType name="TransactionEvidencePackageDetailsModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="ID" type="xs:int" />
    <xs:element minOccurs="0" name="ProntoID" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="GroupName" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Status" type="q45:Option.TransactionStatusTypes" xmlns:q45="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="CreatedDate" type="xs:dateTime" />
    <xs:element minOccurs="0" name="ClosedDate" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="ExpirationDate" nillable="true" type="xs:dateTime" />
    <xs:element minOccurs="0" name="IsTest" type="xs:boolean" />
    <xs:element minOccurs="0" name="TransactionEvidencePackageDocumentDetails" nillable="true" type="tns:ArrayOfTransactionEvidencePackageDocumentDetailsModel" />
  </xs:sequence>
</xs:complexType>
See Also
Transaction
