TransactionWorkflowActionModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

Base Type

Extension of Action Complex Type

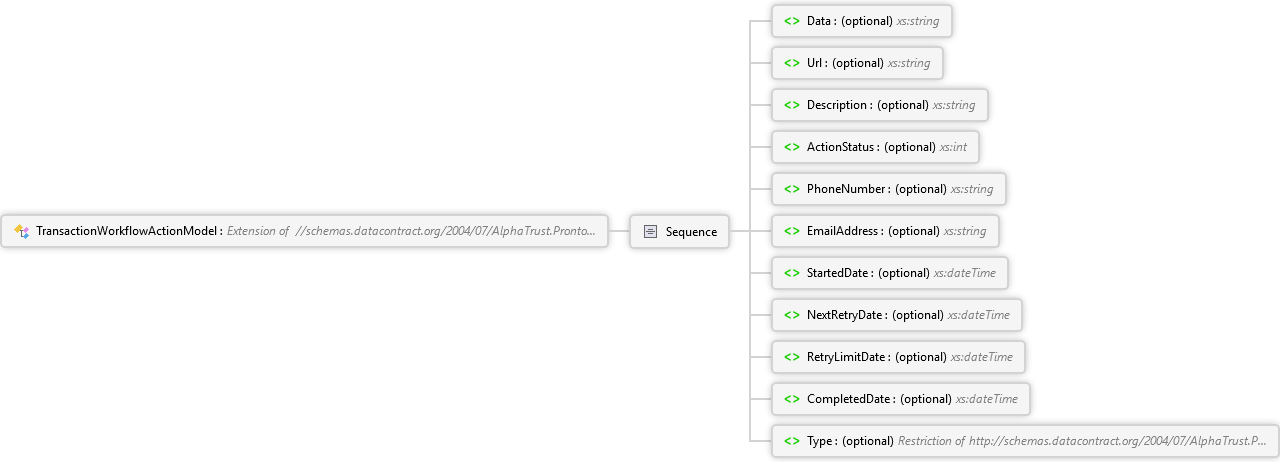

Diagram

Overview

TransactionWorkflowActionModel Extension of Action Complex Type

Sequence

Data optional xs:string

Url optional xs:string

Description optional xs:string

ActionStatus optional xs:int

PhoneNumber optional xs:string

EmailAddress optional xs:string

StartedDate optional xs:dateTime

NextRetryDate optional xs:dateTime

RetryLimitDate optional xs:dateTime

CompletedDate optional xs:dateTime

Type optional Option.TransactionActionTypes Simple Type

Used By

TransactionWorkflowActionModel Element
TransactionWorkflowActionModel Element

Source

<xs:complexType name="TransactionWorkflowActionModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexContent mixed="false">
    <xs:extension base="q15:Action" xmlns:q15="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Workflow">
      <xs:sequence>
        <xs:element minOccurs="0" name="Type" type="q16:Option.TransactionActionTypes" xmlns:q16="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
