ArrayOfSignatureBlockPdfDataPlacementModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

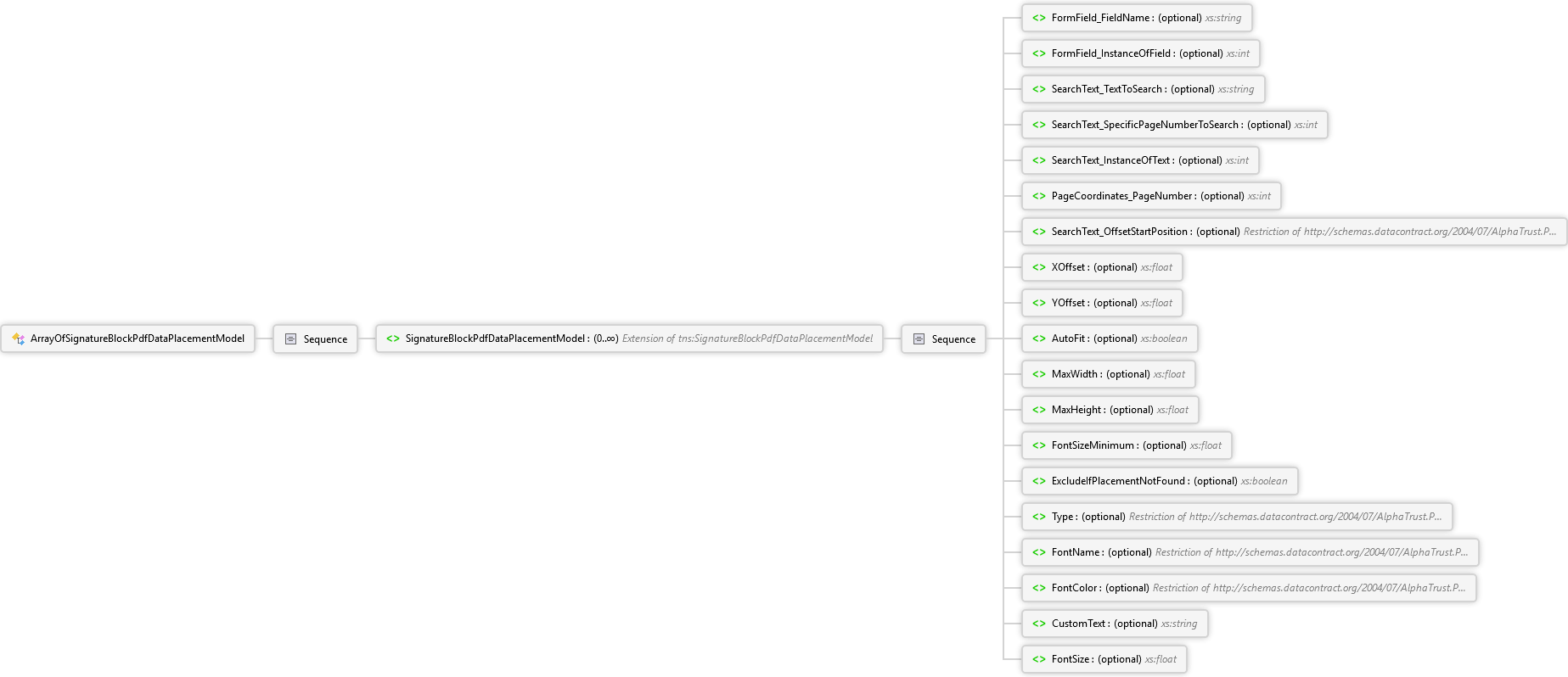

Diagram

Overview

ArrayOfSignatureBlockPdfDataPlacementModel

Sequence

SignatureBlockPdfDataPlacementModel 0..∞ SignatureBlockPdfDataPlacementModel Complex Type

Sequence

FormField_FieldName optional xs:string

FormField_InstanceOfField optional xs:int

SearchText_TextToSearch optional xs:string

SearchText_SpecificPageNumberToSearch optional xs:int

SearchText_InstanceOfText optional xs:int

PageCoordinates_PageNumber optional xs:int

SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type

XOffset optional xs:float

YOffset optional xs:float

AutoFit optional xs:boolean

MaxWidth optional xs:float

MaxHeight optional xs:float

FontSizeMinimum optional xs:float

ExcludeIfPlacementNotFound optional xs:boolean

Type optional Option.SignatureBlockDataTypes Simple Type

FontName optional Option.SignatureBlockFontNames Simple Type

FontColor optional Option.SignatureBlockDataColors Simple Type

CustomText optional xs:string

FontSize optional xs:float

Used By

ArrayOfSignatureBlockPdfDataPlacementModel Element
AdditionalPdfDataPlacements Element

Source

<xs:complexType name="ArrayOfSignatureBlockPdfDataPlacementModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" maxOccurs="unbounded" name="SignatureBlockPdfDataPlacementModel" nillable="true" type="tns:SignatureBlockPdfDataPlacementModel" />
  </xs:sequence>
</xs:complexType>
