SignatureBlockPdfDataPlacementModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

Base Type

Extension of PlacementModel Complex Type

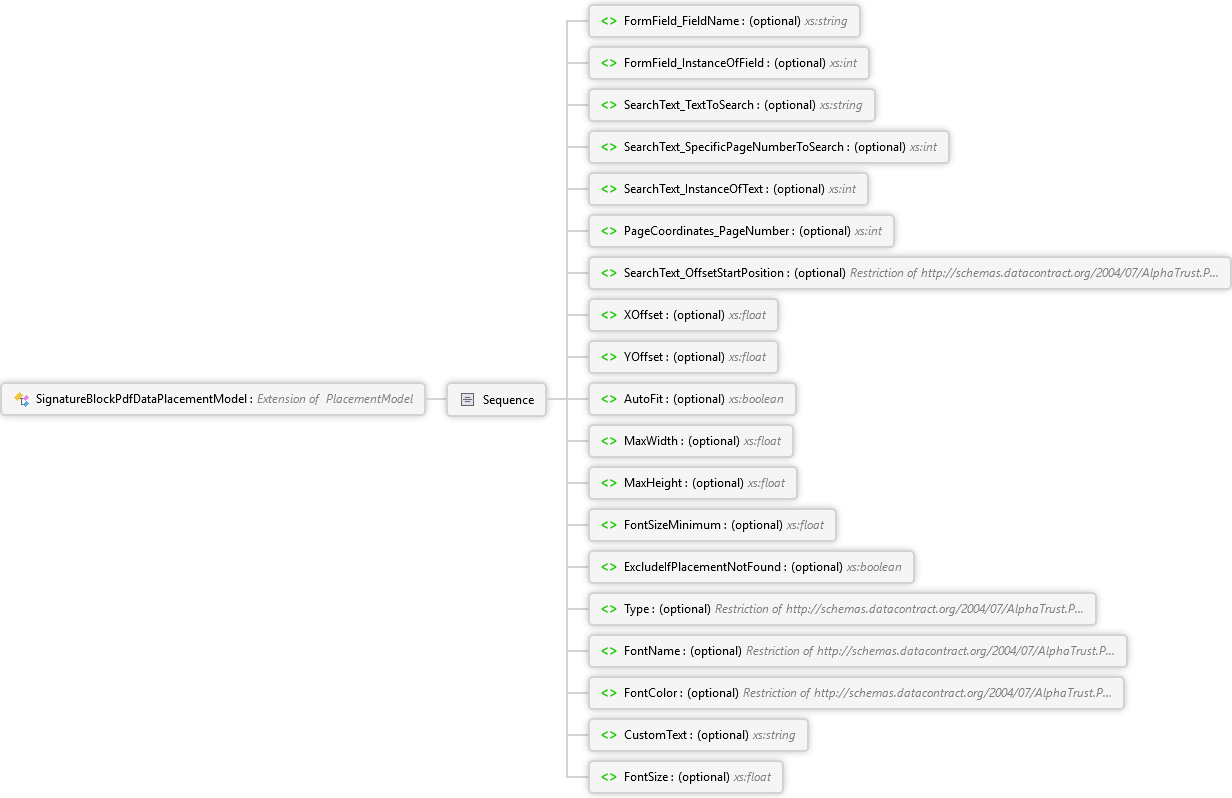

Diagram

Overview

SignatureBlockPdfDataPlacementModel Extension of PlacementModel Complex Type

Sequence

FormField_FieldName optional xs:string

FormField_InstanceOfField optional xs:int

SearchText_TextToSearch optional xs:string

SearchText_SpecificPageNumberToSearch optional xs:int

SearchText_InstanceOfText optional xs:int

PageCoordinates_PageNumber optional xs:int

SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type

XOffset optional xs:float

YOffset optional xs:float

AutoFit optional xs:boolean

MaxWidth optional xs:float

MaxHeight optional xs:float

FontSizeMinimum optional xs:float

ExcludeIfPlacementNotFound optional xs:boolean

Type optional Option.SignatureBlockDataTypes Simple Type

FontName optional Option.SignatureBlockFontNames Simple Type

FontColor optional Option.SignatureBlockDataColors Simple Type

CustomText optional xs:string

FontSize optional xs:float

Used By

SignatureBlockPdfDataPlacementModel Element
SignatureBlockPdfDataPlacementModel Element

Source

<xs:complexType name="SignatureBlockPdfDataPlacementModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexContent mixed="false">
    <xs:extension base="tns:PlacementModel">
      <xs:sequence>
        <xs:element minOccurs="0" name="Type" nillable="true" type="q13:Option.SignatureBlockDataTypes" xmlns:q13="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
        <xs:element minOccurs="0" name="FontName" nillable="true" type="q14:Option.SignatureBlockFontNames" xmlns:q14="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
        <xs:element minOccurs="0" name="FontColor" nillable="true" type="q15:Option.SignatureBlockDataColors" xmlns:q15="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
        <xs:element minOccurs="0" name="CustomText" nillable="true" type="xs:string" />
        <xs:element minOccurs="0" name="FontSize" nillable="true" type="xs:float" />
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
