Task
PdfPlacement Element
Task > SignatureModel Complex Type : PdfPlacement Element
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task
Type
PdfSignaturePlacementModel Complex Type

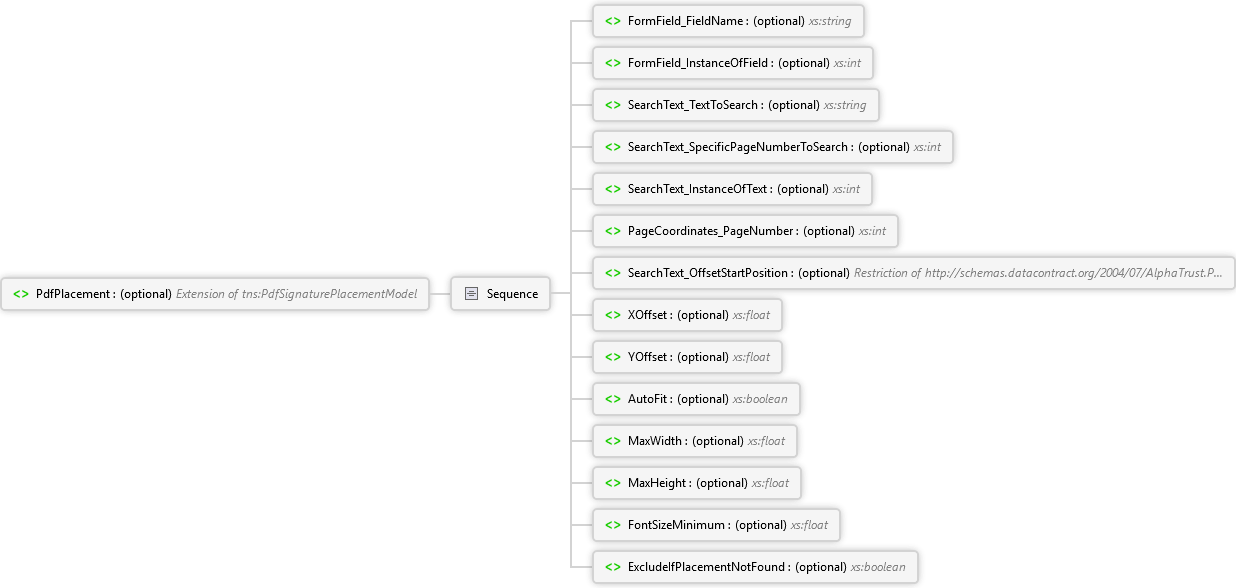

Diagram
ExcludeIfPlacementNotFound Element FontSizeMinimum Element MaxHeight Element MaxWidth Element AutoFit Element YOffset Element XOffset Element SearchText_OffsetStartPosition Element PageCoordinates_PageNumber Element SearchText_InstanceOfText Element SearchText_SpecificPageNumberToSearch Element SearchText_TextToSearch Element FormField_InstanceOfField Element FormField_FieldName Element Sequence PdfPlacement Element
Overview
PdfPlacement optional PdfSignaturePlacementModel Complex Type
Sequence
FormField_FieldName optional xs:string
FormField_InstanceOfField optional xs:int
SearchText_TextToSearch optional xs:string
SearchText_SpecificPageNumberToSearch optional xs:int
SearchText_InstanceOfText optional xs:int
PageCoordinates_PageNumber optional xs:int
SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type
XOffset optional xs:float
YOffset optional xs:float
AutoFit optional xs:boolean
MaxWidth optional xs:float
MaxHeight optional xs:float
FontSizeMinimum optional xs:float
ExcludeIfPlacementNotFound optional xs:boolean
Source
<xs:element minOccurs="0" name="PdfPlacement" nillable="true" type="tns:PdfSignaturePlacementModel" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
See Also
SignatureModel Complex Type | Task
