PdfSignaturePlacementModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

Base Type

Extension of PlacementModel Complex Type

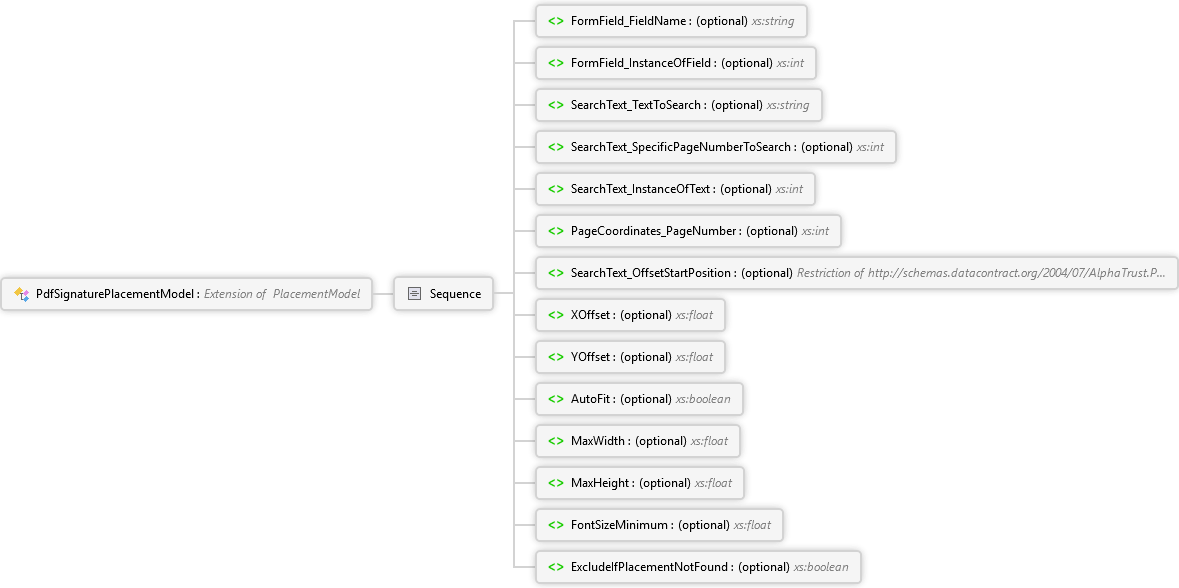

Diagram

Overview

PdfSignaturePlacementModel Extension of PlacementModel Complex Type

Sequence

FormField_FieldName optional xs:string

FormField_InstanceOfField optional xs:int

SearchText_TextToSearch optional xs:string

SearchText_SpecificPageNumberToSearch optional xs:int

SearchText_InstanceOfText optional xs:int

PageCoordinates_PageNumber optional xs:int

SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type

XOffset optional xs:float

YOffset optional xs:float

AutoFit optional xs:boolean

MaxWidth optional xs:float

MaxHeight optional xs:float

FontSizeMinimum optional xs:float

ExcludeIfPlacementNotFound optional xs:boolean

Used By

PdfSignaturePlacementModel Element
PdfPlacement Element

Source

<xs:complexType name="PdfSignaturePlacementModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexContent mixed="false">
    <xs:extension base="tns:PlacementModel">
      <xs:sequence />
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
