ArrayOfDocumentLaunchDetails Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

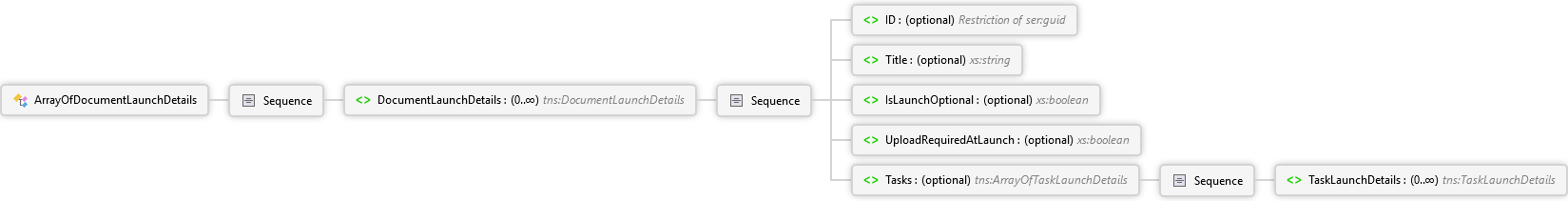

Diagram

Overview

ArrayOfDocumentLaunchDetails

Sequence

DocumentLaunchDetails 0..∞ DocumentLaunchDetails Complex Type

Sequence

ID optional guid Simple Type

Title optional xs:string

IsLaunchOptional optional xs:boolean

UploadRequiredAtLaunch optional xs:boolean

Tasks optional ArrayOfTaskLaunchDetails Complex Type

Sequence

TaskLaunchDetails 0..∞ TaskLaunchDetails Complex Type

Sequence

ID optional guid Simple Type

Label optional xs:string

IsOptional optional xs:boolean

Used By

ArrayOfDocumentLaunchDetails Element
Documents Element

Source

<xs:complexType name="ArrayOfDocumentLaunchDetails" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" maxOccurs="unbounded" name="DocumentLaunchDetails" nillable="true" type="tns:DocumentLaunchDetails" />
  </xs:sequence>
</xs:complexType>
