DocumentTextStampsModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document

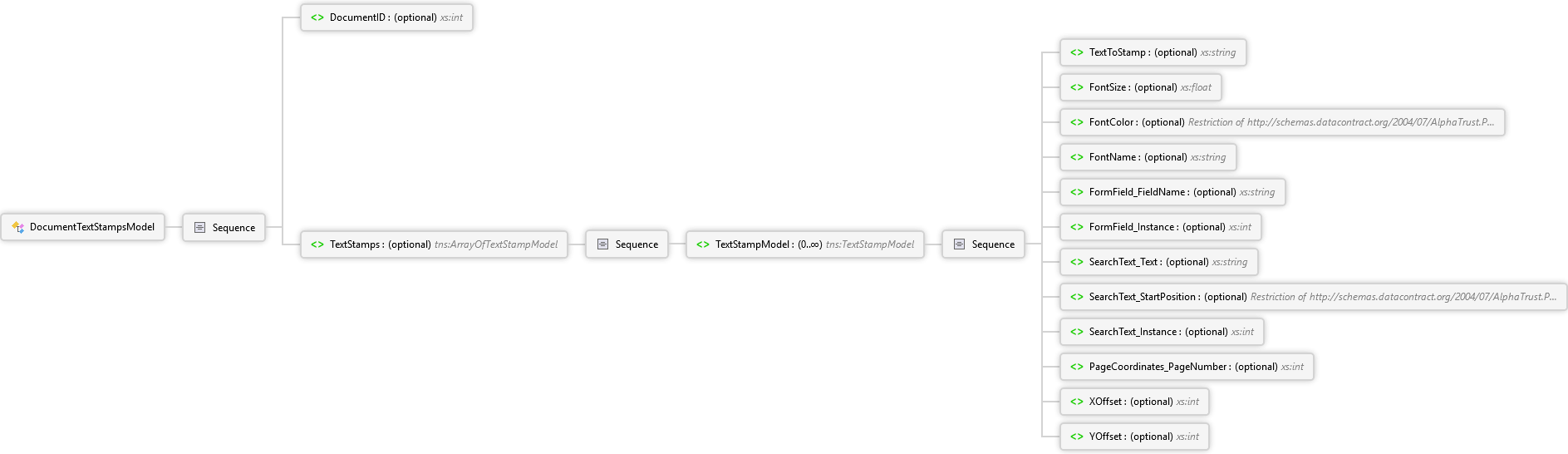

Diagram

Overview

DocumentTextStampsModel

Sequence

DocumentID optional xs:int

TextStamps optional ArrayOfTextStampModel Complex Type

Sequence

TextStampModel 0..∞ TextStampModel Complex Type

Sequence

TextToStamp optional xs:string

FontSize optional xs:float

FontColor optional Option.TextStampFontColorTypes Simple Type

FontName optional xs:string

FormField_FieldName optional xs:string

FormField_Instance optional xs:int

SearchText_Text optional xs:string

SearchText_StartPosition optional Option.PlacementPositionTypes Simple Type

SearchText_Instance optional xs:int

PageCoordinates_PageNumber optional xs:int

XOffset optional xs:int

YOffset optional xs:int

Used By

DocumentTextStampsModel Element
DocumentTextStampsModel Element

Source

<xs:complexType name="DocumentTextStampsModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="DocumentID" type="xs:int" />
    <xs:element minOccurs="0" name="TextStamps" nillable="true" type="tns:ArrayOfTextStampModel" />
  </xs:sequence>
</xs:complexType>
