TokenData Element

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

Type

TransactionTokenDataModel Complex Type

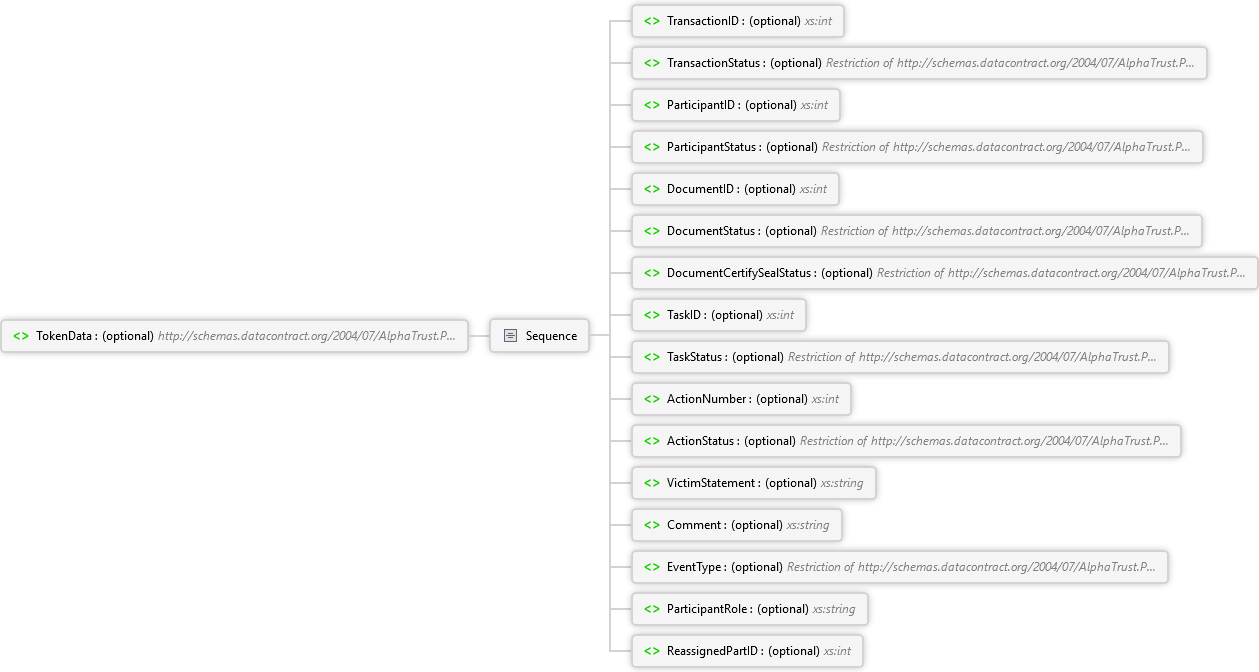

Diagram

Overview

TokenData optional TransactionTokenDataModel Complex Type

Sequence

TransactionID optional xs:int

TransactionStatus optional Option.TransactionStatusTypes Simple Type

ParticipantID optional xs:int

ParticipantStatus optional Option.TransactionStatusTypes Simple Type

DocumentID optional xs:int

DocumentStatus optional Option.TransactionStatusTypes Simple Type

DocumentCertifySealStatus optional Option.TransactionStatusTypes Simple Type

TaskID optional xs:int

TaskStatus optional Option.TransactionStatusTypes Simple Type

ActionNumber optional xs:int

ActionStatus optional Option.TransactionStatusTypes Simple Type

VictimStatement optional xs:string

Comment optional xs:string

EventType optional Option.TransactionTokenDataEventTypes Simple Type

ParticipantRole optional xs:string

ReassignedPartID optional xs:int

Source

<xs:element minOccurs="0" name="TokenData" nillable="true" type="q5:TransactionTokenDataModel" xmlns:q5="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
