TransactionTokenDataModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

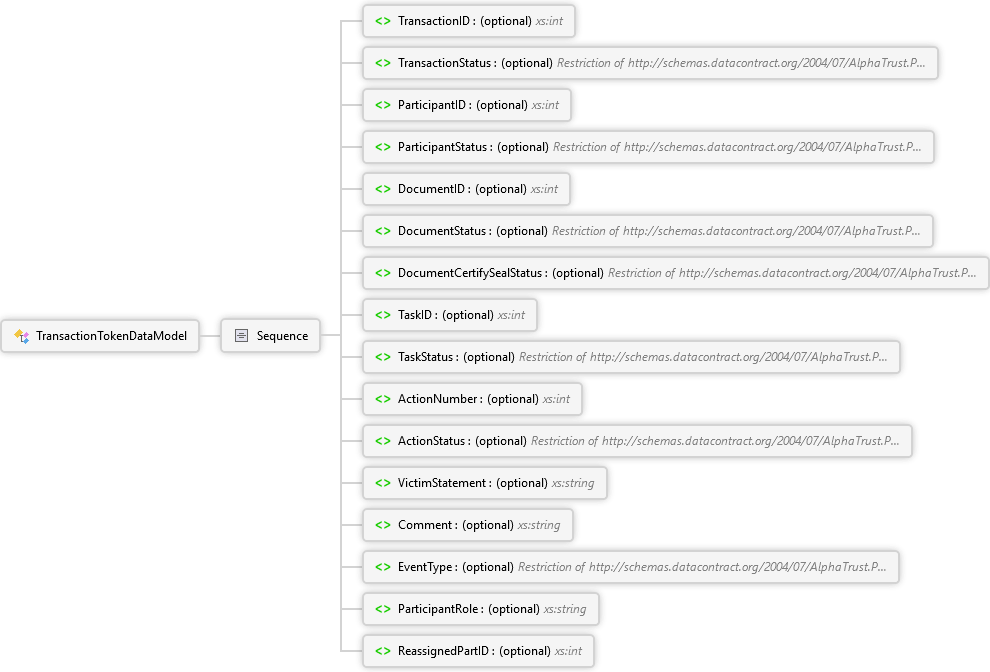

Diagram

Overview

TransactionTokenDataModel

Sequence

TransactionID optional xs:int

TransactionStatus optional Option.TransactionStatusTypes Simple Type

ParticipantID optional xs:int

ParticipantStatus optional Option.TransactionStatusTypes Simple Type

DocumentID optional xs:int

DocumentStatus optional Option.TransactionStatusTypes Simple Type

DocumentCertifySealStatus optional Option.TransactionStatusTypes Simple Type

TaskID optional xs:int

TaskStatus optional Option.TransactionStatusTypes Simple Type

ActionNumber optional xs:int

ActionStatus optional Option.TransactionStatusTypes Simple Type

VictimStatement optional xs:string

Comment optional xs:string

EventType optional Option.TransactionTokenDataEventTypes Simple Type

ParticipantRole optional xs:string

ReassignedPartID optional xs:int

Used By

TokenData Element
TransactionTokenDataModel Element

Source

<xs:complexType name="TransactionTokenDataModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="TransactionID" type="xs:int" />
    <xs:element minOccurs="0" name="TransactionStatus" nillable="true" type="q31:Option.TransactionStatusTypes" xmlns:q31="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="ParticipantID" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ParticipantStatus" nillable="true" type="q32:Option.TransactionStatusTypes" xmlns:q32="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="DocumentID" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="DocumentStatus" nillable="true" type="q33:Option.TransactionStatusTypes" xmlns:q33="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="DocumentCertifySealStatus" nillable="true" type="q34:Option.TransactionStatusTypes" xmlns:q34="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="TaskID" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="TaskStatus" nillable="true" type="q35:Option.TransactionStatusTypes" xmlns:q35="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="ActionNumber" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="ActionStatus" nillable="true" type="q36:Option.TransactionStatusTypes" xmlns:q36="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="VictimStatement" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Comment" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="EventType" nillable="true" type="q37:Option.TransactionTokenDataEventTypes" xmlns:q37="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts" />
    <xs:element minOccurs="0" name="ParticipantRole" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="ReassignedPartID" nillable="true" type="xs:int" />
  </xs:sequence>
</xs:complexType>
