WorkflowListServiceReturnModel Complex Type

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

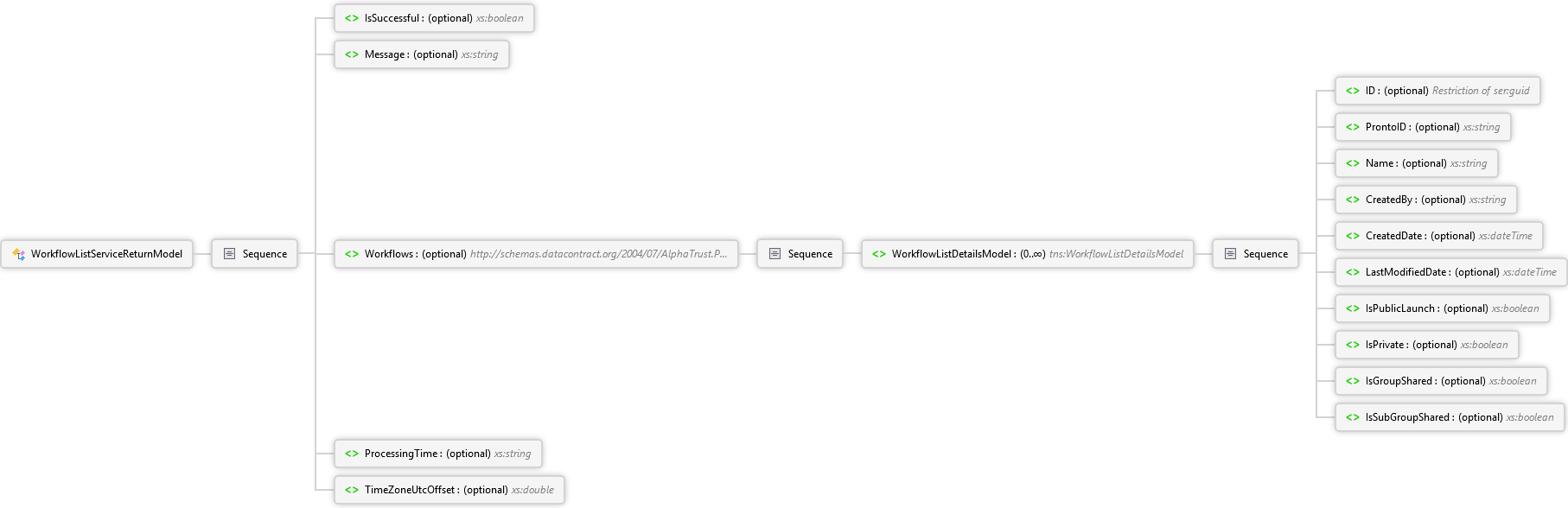

Diagram

Overview

WorkflowListServiceReturnModel

Sequence

IsSuccessful optional xs:boolean

Message optional xs:string

Workflows optional ArrayOfWorkflowListDetailsModel Complex Type

Sequence

WorkflowListDetailsModel 0..∞ WorkflowListDetailsModel Complex Type

Sequence

ID optional guid Simple Type

ProntoID optional xs:string

Name optional xs:string

CreatedBy optional xs:string

CreatedDate optional xs:dateTime

LastModifiedDate optional xs:dateTime

IsPublicLaunch optional xs:boolean

IsPrivate optional xs:boolean

IsGroupShared optional xs:boolean

IsSubGroupShared optional xs:boolean

ProcessingTime optional xs:string

TimeZoneUtcOffset optional xs:double

Used By

GetWorkflowsListResult Element
WorkflowListServiceReturnModel Element

Source

<xs:complexType name="WorkflowListServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Workflows" nillable="true" type="q29:ArrayOfWorkflowListDetailsModel" xmlns:q29="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.WorkflowDesigner.Workflow" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
