Workflows Element

Namespace

http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

Type

ArrayOfWorkflowListDetailsModel Complex Type

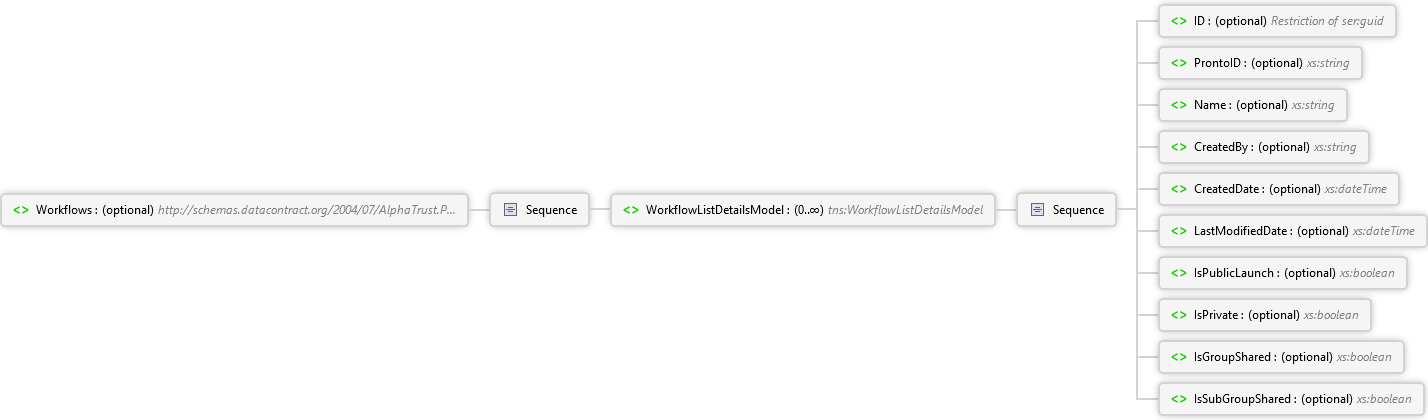

Diagram

Overview

Workflows optional ArrayOfWorkflowListDetailsModel Complex Type

Sequence

WorkflowListDetailsModel 0..∞ WorkflowListDetailsModel Complex Type

Sequence

ID optional guid Simple Type

ProntoID optional xs:string

Name optional xs:string

CreatedBy optional xs:string

CreatedDate optional xs:dateTime

LastModifiedDate optional xs:dateTime

IsPublicLaunch optional xs:boolean

IsPrivate optional xs:boolean

IsGroupShared optional xs:boolean

IsSubGroupShared optional xs:boolean

Source

<xs:element minOccurs="0" name="Workflows" nillable="true" type="q29:ArrayOfWorkflowListDetailsModel" xmlns:q29="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.WorkflowDesigner.Workflow" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
