Transaction
TransactionEvidencePackageModel Complex Type
Transaction : TransactionEvidencePackageModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

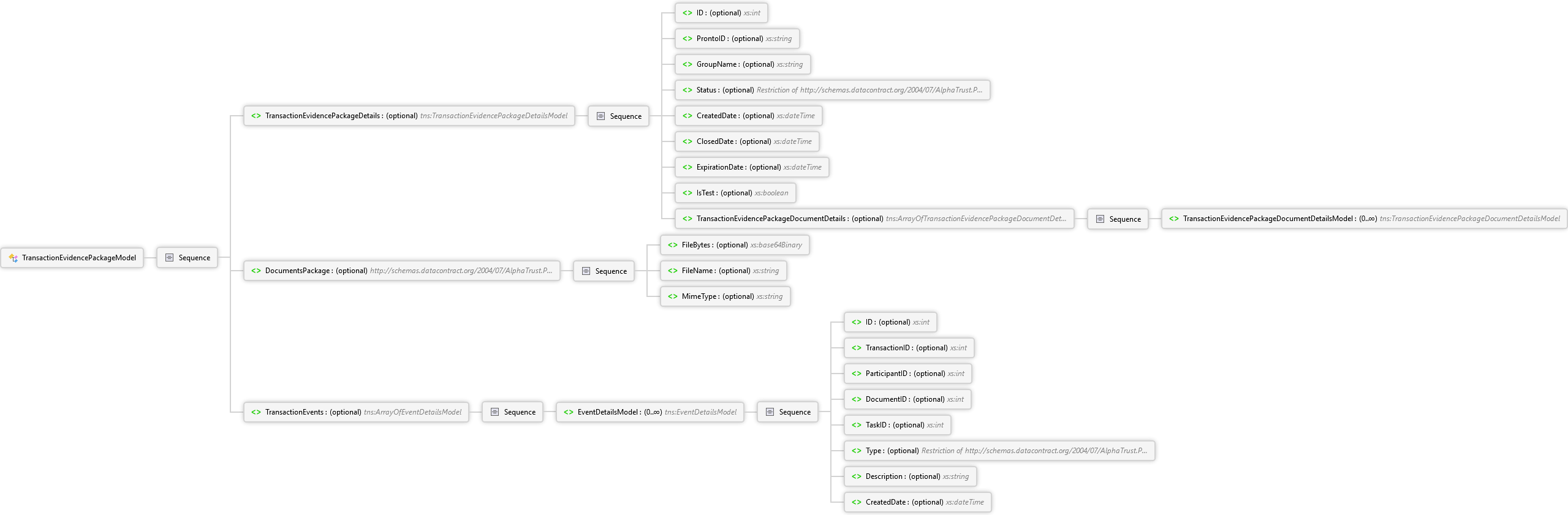

Diagram
CreatedDate Element Description Element Type Element TaskID Element DocumentID Element ParticipantID Element TransactionID Element ID Element Sequence EventDetailsModel Element Sequence TransactionEvents Element MimeType Element FileName Element FileBytes Element Sequence DocumentsPackage Element TransactionEvidencePackageDocumentDetailsModel Element Sequence TransactionEvidencePackageDocumentDetails Element IsTest Element ExpirationDate Element ClosedDate Element CreatedDate Element Status Element GroupName Element ProntoID Element ID Element Sequence TransactionEvidencePackageDetails Element Sequence TransactionEvidencePackageModel Complex Type
Overview
TransactionEvidencePackageModel
Sequence
TransactionEvidencePackageDetails optional TransactionEvidencePackageDetailsModel Complex Type
Sequence
ID optional xs:int
ProntoID optional xs:string
GroupName optional xs:string
Status optional Option.TransactionStatusTypes Simple Type
CreatedDate optional xs:dateTime
ClosedDate optional xs:dateTime
ExpirationDate optional xs:dateTime
IsTest optional xs:boolean
TransactionEvidencePackageDocumentDetails optional ArrayOfTransactionEvidencePackageDocumentDetailsModel Complex Type
Sequence
TransactionEvidencePackageDocumentDetailsModel 0..∞ TransactionEvidencePackageDocumentDetailsModel Complex Type
Sequence
DocumentID optional xs:int
Title optional xs:string
Type optional xs:string
Status optional Option.TransactionStatusTypes Simple Type
CreatedDate optional xs:dateTime
DocumentVersionDetails optional ArrayOfDocumentVersionDetailModel Complex Type
Sequence
DocumentVersionDetailModel 0..∞ DocumentVersionDetailModel Complex Type
Sequence
ID optional xs:int
DocumentID optional xs:int
Version optional xs:short
FileName optional xs:string
CreateDate optional xs:dateTime
SealedDate optional xs:dateTime
CertifiedDate optional xs:dateTime
IsSealPending optional xs:boolean
IsCertifyPending optional xs:boolean
DocumentSHA256Hash optional xs:string
VersionInfo optional xs:string
IsFinal optional xs:boolean
DocumentsPackage optional DocumentFileModel Complex Type
Sequence
FileBytes optional xs:base64Binary
FileName optional xs:string
MimeType optional xs:string
TransactionEvents optional ArrayOfEventDetailsModel Complex Type
Sequence
EventDetailsModel 0..∞ EventDetailsModel Complex Type
Sequence
ID optional xs:int
TransactionID optional xs:int
ParticipantID optional xs:int
DocumentID optional xs:int
TaskID optional xs:int
Type optional EventHistoryManager.EventTypes Simple Type
Description optional xs:string
CreatedDate optional xs:dateTime
Used By
TransactionEvidencePackageModel Element
TransactionEvidencePackageModel Element
Source
<xs:complexType name="TransactionEvidencePackageModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="TransactionEvidencePackageDetails" nillable="true" type="tns:TransactionEvidencePackageDetailsModel" />
    <xs:element minOccurs="0" name="DocumentsPackage" nillable="true" type="q44:DocumentFileModel" xmlns:q44="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document" />
    <xs:element minOccurs="0" name="TransactionEvents" nillable="true" type="tns:ArrayOfEventDetailsModel" />
  </xs:sequence>
</xs:complexType>
See Also
Transaction
