ServiceReturns
TransactionEvidencePackageServiceReturnModel Complex Type
ServiceReturns : TransactionEvidencePackageServiceReturnModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

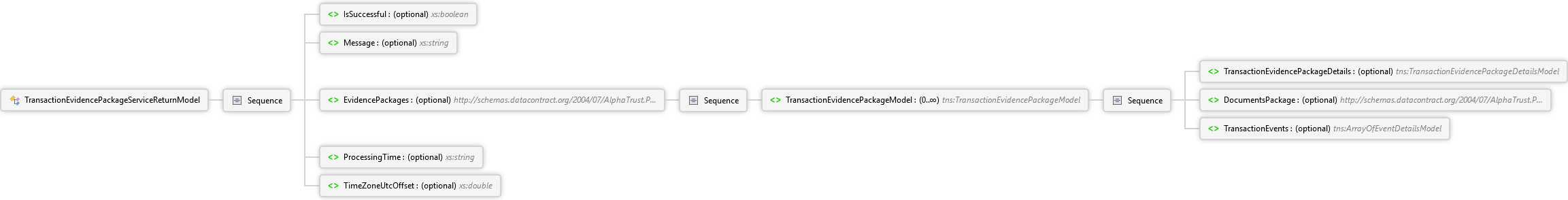

Diagram
TimeZoneUtcOffset Element ProcessingTime Element TransactionEvents Element DocumentsPackage Element TransactionEvidencePackageDetails Element Sequence TransactionEvidencePackageModel Element Sequence EvidencePackages Element Message Element IsSuccessful Element Sequence TransactionEvidencePackageServiceReturnModel Complex Type
Overview
TransactionEvidencePackageServiceReturnModel
Sequence
IsSuccessful optional xs:boolean
Message optional xs:string
EvidencePackages optional ArrayOfTransactionEvidencePackageModel Complex Type
Sequence
TransactionEvidencePackageModel 0..∞ TransactionEvidencePackageModel Complex Type
Sequence
TransactionEvidencePackageDetails optional TransactionEvidencePackageDetailsModel Complex Type
DocumentsPackage optional DocumentFileModel Complex Type
Sequence
FileBytes optional xs:base64Binary
FileName optional xs:string
MimeType optional xs:string
TransactionEvents optional ArrayOfEventDetailsModel Complex Type
Sequence
EventDetailsModel 0..∞ EventDetailsModel Complex Type
Sequence
ID optional xs:int
TransactionID optional xs:int
ParticipantID optional xs:int
DocumentID optional xs:int
TaskID optional xs:int
Type optional EventHistoryManager.EventTypes Simple Type
Description optional xs:string
CreatedDate optional xs:dateTime
ProcessingTime optional xs:string
TimeZoneUtcOffset optional xs:double
Used By
GetTransactionEvidencePackagesResult Element
TransactionEvidencePackageServiceReturnModel Element
Source
<xs:complexType name="TransactionEvidencePackageServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="EvidencePackages" nillable="true" type="q6:ArrayOfTransactionEvidencePackageModel" xmlns:q6="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
See Also
ServiceReturns
