ServiceReturns
WorkflowLaunchRulesServiceReturnModel Complex Type
ServiceReturns : WorkflowLaunchRulesServiceReturnModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

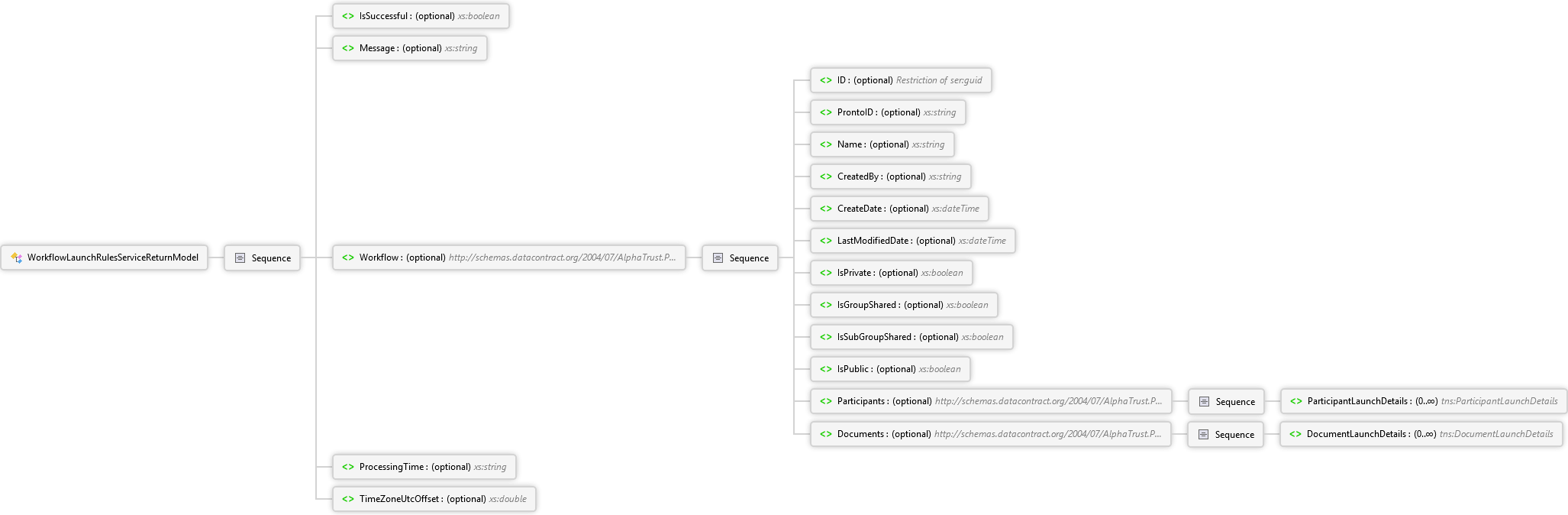

Diagram
TimeZoneUtcOffset Element ProcessingTime Element DocumentLaunchDetails Element Sequence Documents Element ParticipantLaunchDetails Element Sequence Participants Element IsPublic Element IsSubGroupShared Element IsGroupShared Element IsPrivate Element LastModifiedDate Element CreateDate Element CreatedBy Element Name Element ProntoID Element ID Element Sequence Workflow Element Message Element IsSuccessful Element Sequence WorkflowLaunchRulesServiceReturnModel Complex Type
Overview
WorkflowLaunchRulesServiceReturnModel
Sequence
IsSuccessful optional xs:boolean
Message optional xs:string
Workflow optional WorkflowLaunchDetailsModel Complex Type
Sequence
ID optional guid Simple Type
ProntoID optional xs:string
Name optional xs:string
CreatedBy optional xs:string
CreateDate optional xs:dateTime
LastModifiedDate optional xs:dateTime
IsPrivate optional xs:boolean
IsGroupShared optional xs:boolean
IsSubGroupShared optional xs:boolean
IsPublic optional xs:boolean
Participants optional ArrayOfParticipantLaunchDetails Complex Type
Sequence
ParticipantLaunchDetails 0..∞ ParticipantLaunchDetails Complex Type
Sequence
ID optional guid Simple Type
Role optional xs:string
FullName optional xs:string
EmailAddress optional xs:string
PhoneNumber optional xs:string
Title optional xs:string
Organization optional xs:string
IsLaunchOptional optional xs:boolean
FullNameLabelText optional xs:string
EmailAddressLabelText optional xs:string
TitleLabelText optional xs:string
OrganizationLabelText optional xs:string
Documents optional ArrayOfDocumentLaunchDetails Complex Type
Sequence
DocumentLaunchDetails 0..∞ DocumentLaunchDetails Complex Type
Sequence
ID optional guid Simple Type
Title optional xs:string
IsLaunchOptional optional xs:boolean
UploadRequiredAtLaunch optional xs:boolean
Tasks optional ArrayOfTaskLaunchDetails Complex Type
Sequence
TaskLaunchDetails 0..∞ TaskLaunchDetails Complex Type
Sequence
ID optional guid Simple Type
Label optional xs:string
IsOptional optional xs:boolean
ProcessingTime optional xs:string
TimeZoneUtcOffset optional xs:double
Used By
GetWorkflowLaunchRulesResult Element
WorkflowLaunchRulesServiceReturnModel Element
Source
<xs:complexType name="WorkflowLaunchRulesServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Workflow" nillable="true" type="q30:WorkflowLaunchDetailsModel" xmlns:q30="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.WorkflowDesigner.Workflow" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
See Also
ServiceReturns
