urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
GetWorkflowLaunchRulesResponse Element
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc : GetWorkflowLaunchRulesResponse Element
Namespace urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc

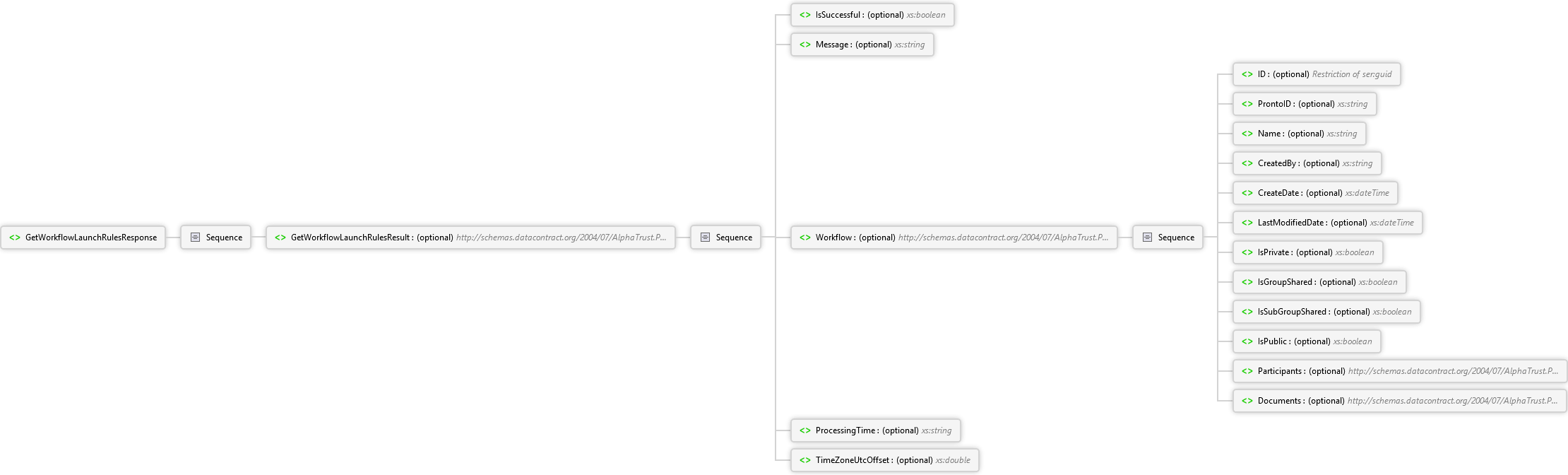

Diagram
TimeZoneUtcOffset Element ProcessingTime Element Documents Element Participants Element IsPublic Element IsSubGroupShared Element IsGroupShared Element IsPrivate Element LastModifiedDate Element CreateDate Element CreatedBy Element Name Element ProntoID Element ID Element Sequence Workflow Element Message Element IsSuccessful Element Sequence GetWorkflowLaunchRulesResult Element Sequence GetWorkflowLaunchRulesResponse Element
Overview
GetWorkflowLaunchRulesResponse
Sequence
GetWorkflowLaunchRulesResult optional WorkflowLaunchRulesServiceReturnModel Complex Type
Sequence
IsSuccessful optional xs:boolean
Message optional xs:string
Workflow optional WorkflowLaunchDetailsModel Complex Type
Sequence
ID optional guid Simple Type
ProntoID optional xs:string
Name optional xs:string
CreatedBy optional xs:string
CreateDate optional xs:dateTime
LastModifiedDate optional xs:dateTime
IsPrivate optional xs:boolean
IsGroupShared optional xs:boolean
IsSubGroupShared optional xs:boolean
IsPublic optional xs:boolean
Participants optional ArrayOfParticipantLaunchDetails Complex Type
Sequence
ParticipantLaunchDetails 0..∞ ParticipantLaunchDetails Complex Type
Sequence
ID optional guid Simple Type
Role optional xs:string
FullName optional xs:string
EmailAddress optional xs:string
PhoneNumber optional xs:string
Title optional xs:string
Organization optional xs:string
IsLaunchOptional optional xs:boolean
FullNameLabelText optional xs:string
EmailAddressLabelText optional xs:string
TitleLabelText optional xs:string
OrganizationLabelText optional xs:string
Documents optional ArrayOfDocumentLaunchDetails Complex Type
ProcessingTime optional xs:string
TimeZoneUtcOffset optional xs:double
Source
<xs:element name="GetWorkflowLaunchRulesResponse" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element minOccurs="0" name="GetWorkflowLaunchRulesResult" nillable="true" type="q176:WorkflowLaunchRulesServiceReturnModel" xmlns:q176="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
urn:urn-1:AlphaTrust.Pronto.Apis.v5.ProntoService.svc
