Task
SignatureBlockModel Complex Type
Task : SignatureBlockModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task

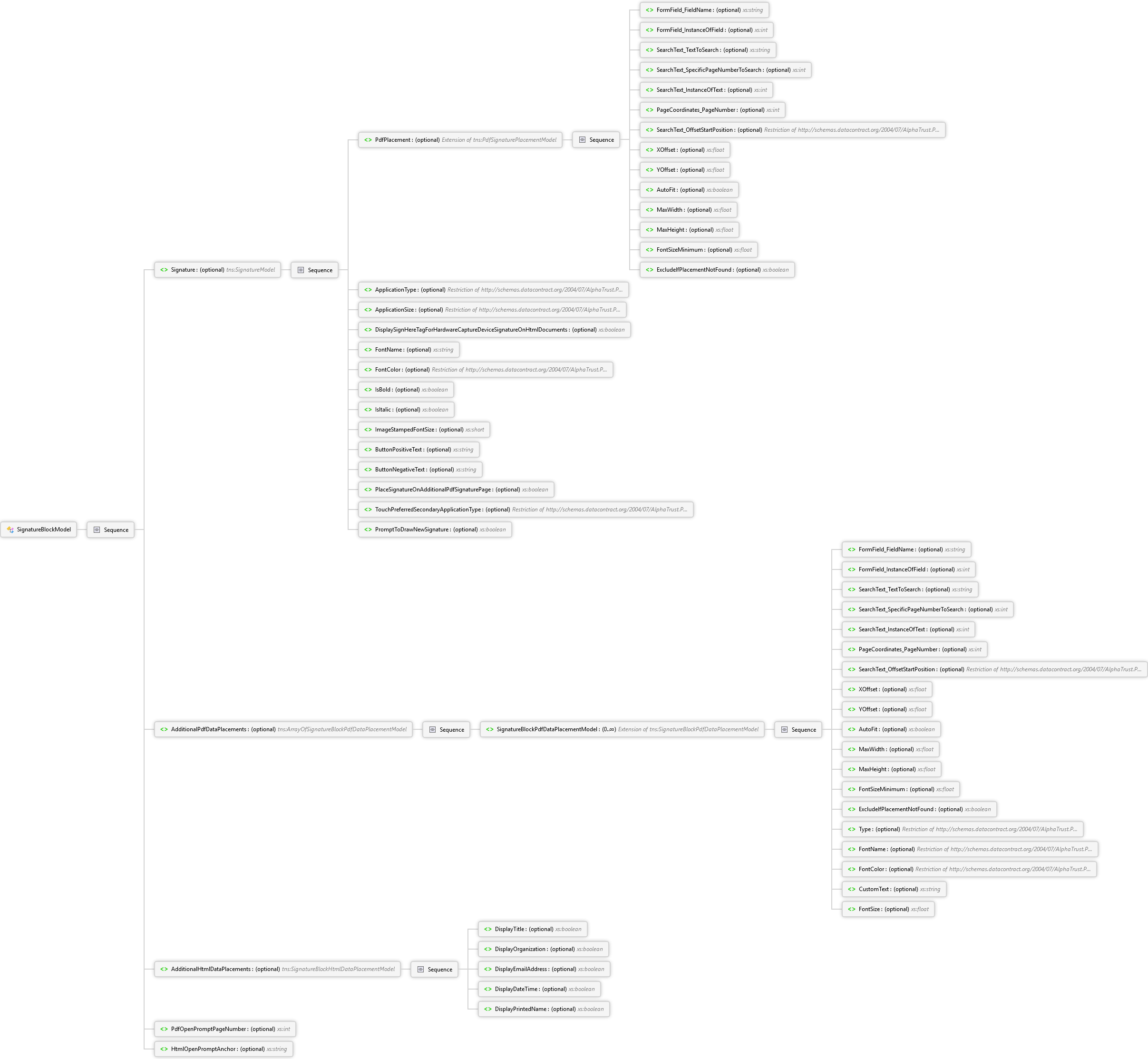

Diagram
HtmlOpenPromptAnchor Element PdfOpenPromptPageNumber Element DisplayPrintedName Element DisplayDateTime Element DisplayEmailAddress Element DisplayOrganization Element DisplayTitle Element Sequence AdditionalHtmlDataPlacements Element FontSize Element CustomText Element FontColor Element FontName Element Type Element ExcludeIfPlacementNotFound Element FontSizeMinimum Element MaxHeight Element MaxWidth Element AutoFit Element YOffset Element XOffset Element SearchText_OffsetStartPosition Element PageCoordinates_PageNumber Element SearchText_InstanceOfText Element SearchText_SpecificPageNumberToSearch Element SearchText_TextToSearch Element FormField_InstanceOfField Element FormField_FieldName Element Sequence SignatureBlockPdfDataPlacementModel Element Sequence AdditionalPdfDataPlacements Element PromptToDrawNewSignature Element TouchPreferredSecondaryApplicationType Element PlaceSignatureOnAdditionalPdfSignaturePage Element ButtonNegativeText Element ButtonPositiveText Element ImageStampedFontSize Element IsItalic Element IsBold Element FontColor Element FontName Element DisplaySignHereTagForHardwareCaptureDeviceSignatureOnHtmlDocuments Element ApplicationSize Element ApplicationType Element ExcludeIfPlacementNotFound Element FontSizeMinimum Element MaxHeight Element MaxWidth Element AutoFit Element YOffset Element XOffset Element SearchText_OffsetStartPosition Element PageCoordinates_PageNumber Element SearchText_InstanceOfText Element SearchText_SpecificPageNumberToSearch Element SearchText_TextToSearch Element FormField_InstanceOfField Element FormField_FieldName Element Sequence PdfPlacement Element Sequence Signature Element Sequence SignatureBlockModel Complex Type
Overview
SignatureBlockModel
Sequence
Signature optional SignatureModel Complex Type
Sequence
PdfPlacement optional PdfSignaturePlacementModel Complex Type
Sequence
FormField_FieldName optional xs:string
FormField_InstanceOfField optional xs:int
SearchText_TextToSearch optional xs:string
SearchText_SpecificPageNumberToSearch optional xs:int
SearchText_InstanceOfText optional xs:int
PageCoordinates_PageNumber optional xs:int
SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type
XOffset optional xs:float
YOffset optional xs:float
AutoFit optional xs:boolean
MaxWidth optional xs:float
MaxHeight optional xs:float
FontSizeMinimum optional xs:float
ExcludeIfPlacementNotFound optional xs:boolean
ApplicationType optional Option.SignatureBlockSignatureApplicationTypes Simple Type
ApplicationSize optional Option.SignatureBlockSignatureApplicationSizes Simple Type
DisplaySignHereTagForHardwareCaptureDeviceSignatureOnHtmlDocuments optional xs:boolean
FontName optional xs:string
FontColor optional Option.SignatureBlockSignatureColors Simple Type
IsBold optional xs:boolean
IsItalic optional xs:boolean
ImageStampedFontSize optional xs:short
ButtonPositiveText optional xs:string
ButtonNegativeText optional xs:string
PlaceSignatureOnAdditionalPdfSignaturePage optional xs:boolean
TouchPreferredSecondaryApplicationType optional Option.SignatureBlockTouchPreferredSecondarySignatureApplicationTypes Simple Type
PromptToDrawNewSignature optional xs:boolean
AdditionalPdfDataPlacements optional ArrayOfSignatureBlockPdfDataPlacementModel Complex Type
Sequence
SignatureBlockPdfDataPlacementModel 0..∞ SignatureBlockPdfDataPlacementModel Complex Type
Sequence
FormField_FieldName optional xs:string
FormField_InstanceOfField optional xs:int
SearchText_TextToSearch optional xs:string
SearchText_SpecificPageNumberToSearch optional xs:int
SearchText_InstanceOfText optional xs:int
PageCoordinates_PageNumber optional xs:int
SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type
XOffset optional xs:float
YOffset optional xs:float
AutoFit optional xs:boolean
MaxWidth optional xs:float
MaxHeight optional xs:float
FontSizeMinimum optional xs:float
ExcludeIfPlacementNotFound optional xs:boolean
Type optional Option.SignatureBlockDataTypes Simple Type
FontName optional Option.SignatureBlockFontNames Simple Type
FontColor optional Option.SignatureBlockDataColors Simple Type
CustomText optional xs:string
FontSize optional xs:float
AdditionalHtmlDataPlacements optional SignatureBlockHtmlDataPlacementModel Complex Type
Sequence
DisplayTitle optional xs:boolean
DisplayOrganization optional xs:boolean
DisplayEmailAddress optional xs:boolean
DisplayDateTime optional xs:boolean
DisplayPrintedName optional xs:boolean
PdfOpenPromptPageNumber optional xs:int
HtmlOpenPromptAnchor optional xs:string
Used By
SignatureBlockModel Element
SignatureBlock Element
SignatureBlock Element
Source
<xs:complexType name="SignatureBlockModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="Signature" nillable="true" type="tns:SignatureModel" />
    <xs:element minOccurs="0" name="AdditionalPdfDataPlacements" nillable="true" type="tns:ArrayOfSignatureBlockPdfDataPlacementModel" />
    <xs:element minOccurs="0" name="AdditionalHtmlDataPlacements" nillable="true" type="tns:SignatureBlockHtmlDataPlacementModel" />
    <xs:element minOccurs="0" name="PdfOpenPromptPageNumber" nillable="true" type="xs:int" />
    <xs:element minOccurs="0" name="HtmlOpenPromptAnchor" nillable="true" type="xs:string" />
  </xs:sequence>
</xs:complexType>
See Also
Task
