Transaction
ArrayOfTransactionCreateModel Complex Type
Transaction : ArrayOfTransactionCreateModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Transaction

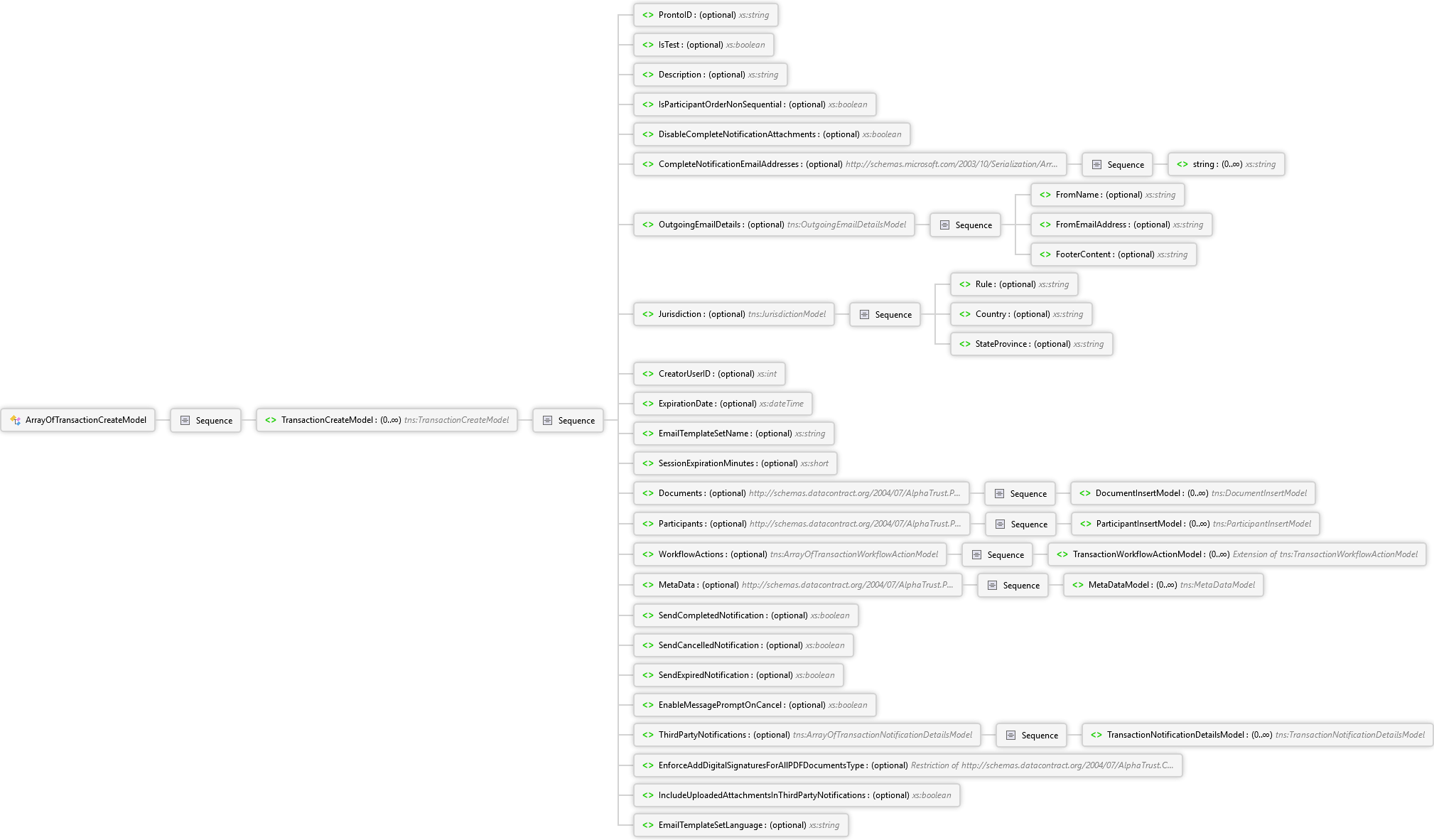

Diagram
EmailTemplateSetLanguage Element IncludeUploadedAttachmentsInThirdPartyNotifications Element EnforceAddDigitalSignaturesForAllPDFDocumentsType Element TransactionNotificationDetailsModel Element Sequence ThirdPartyNotifications Element EnableMessagePromptOnCancel Element SendExpiredNotification Element SendCancelledNotification Element SendCompletedNotification Element MetaDataModel Element Sequence MetaData Element TransactionWorkflowActionModel Element Sequence WorkflowActions Element ParticipantInsertModel Element Sequence Participants Element DocumentInsertModel Element Sequence Documents Element SessionExpirationMinutes Element EmailTemplateSetName Element ExpirationDate Element CreatorUserID Element StateProvince Element Country Element Rule Element Sequence Jurisdiction Element FooterContent Element FromEmailAddress Element FromName Element Sequence OutgoingEmailDetails Element string Element Sequence CompleteNotificationEmailAddresses Element DisableCompleteNotificationAttachments Element IsParticipantOrderNonSequential Element Description Element IsTest Element ProntoID Element Sequence TransactionCreateModel Element Sequence ArrayOfTransactionCreateModel Complex Type
Overview
ArrayOfTransactionCreateModel
Sequence
TransactionCreateModel 0..∞ TransactionCreateModel Complex Type
Sequence
ProntoID optional xs:string
IsTest optional xs:boolean
Description optional xs:string
IsParticipantOrderNonSequential optional xs:boolean
DisableCompleteNotificationAttachments optional xs:boolean
CompleteNotificationEmailAddresses optional ArrayOfstring Complex Type
Sequence
string 0..∞ xs:string
OutgoingEmailDetails optional OutgoingEmailDetailsModel Complex Type
Sequence
FromName optional xs:string
FromEmailAddress optional xs:string
FooterContent optional xs:string
Jurisdiction optional JurisdictionModel Complex Type
Sequence
Rule optional xs:string
Country optional xs:string
StateProvince optional xs:string
CreatorUserID optional xs:int
ExpirationDate optional xs:dateTime
EmailTemplateSetName optional xs:string
SessionExpirationMinutes optional xs:short
Documents optional ArrayOfDocumentInsertModel Complex Type
Sequence
DocumentInsertModel 0..∞ DocumentInsertModel Complex Type
Sequence
TransactionID optional xs:int
Title optional xs:string
Source optional SourceModel Complex Type
Sequence
FileBytes optional xs:base64Binary
FilePath optional xs:string
FileUrl optional xs:string
UserFileNameType optional Option.DocumentUserFileNameTypes Simple Type
UserFileName optional xs:string
InformationText optional xs:string
ContactText optional xs:string
EmailTemplateSetName optional xs:string
EnableSignatureInformationAnnotation optional xs:boolean
NeverAllowAsEmailAttachment optional xs:boolean
DoNotFlattenPdfFormFields optional xs:boolean
IsOptional optional xs:boolean
PageStamp optional PageStampModel Complex Type
Sequence
Type optional Option.DocumentPageStampTypes Simple Type
Value optional xs:int
OtherValue optional xs:string
Increment optional xs:int
AdditionalSignaturePage optional AdditionalSignaturePageModel Complex Type
Sequence
HeaderText optional xs:string
StatementText optional xs:string
NumberOfPages optional xs:int
ServiceType optional Option.DocumentServiceTypes Simple Type
PdfPageImageRenderDpi optional xs:decimal
DeleteDate optional xs:dateTime
WorkflowActions optional ArrayOfDocumentWorkflowActionModel Complex Type
Sequence
DocumentWorkflowActionModel 0..∞ DocumentWorkflowActionModel Complex Type
Sequence
Data optional xs:string
Url optional xs:string
Description optional xs:string
ActionStatus optional xs:int
PhoneNumber optional xs:string
EmailAddress optional xs:string
StartedDate optional xs:dateTime
NextRetryDate optional xs:dateTime
RetryLimitDate optional xs:dateTime
CompletedDate optional xs:dateTime
Type optional Option.DocumentActionTypes Simple Type
Tasks optional ArrayOfTaskInsertModel Complex Type
Sequence
TaskInsertModel 0..∞ TaskInsertModel Complex Type
ser:Id optional xs:ID
ser:Ref optional xs:IDREF
Sequence
MetaData optional ArrayOfMetaDataModel Complex Type
Sequence
MetaDataModel 0..∞ MetaDataModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
Watermark optional WatermarkModel Complex Type
Sequence
DisplayBitonalPdfPageImages optional xs:boolean
Fields optional ArrayOfFormFieldModel Complex Type
Sequence
FormFieldModel 0..∞ FormFieldModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
TextStamps optional ArrayOfTextStampModel Complex Type
Sequence
TextStampModel 0..∞ TextStampModel Complex Type
Sequence
TextToStamp optional xs:string
FontSize optional xs:float
FontColor optional Option.TextStampFontColorTypes Simple Type
FontName optional xs:string
FormField_FieldName optional xs:string
FormField_Instance optional xs:int
SearchText_Text optional xs:string
SearchText_StartPosition optional Option.PlacementPositionTypes Simple Type
SearchText_Instance optional xs:int
PageCoordinates_PageNumber optional xs:int
XOffset optional xs:int
YOffset optional xs:int
IncludeAuditReportWithCompletedDocuments optional xs:boolean
Participants optional ArrayOfParticipantInsertModel Complex Type
Sequence
ParticipantInsertModel 0..∞ ParticipantInsertModel Complex Type
Sequence
TransactionID optional xs:int
Authentication optional AuthenticationModel Complex Type
EmailTemplateSetName optional xs:string
SendRequestViaEmail optional xs:boolean
CompletedTransactionNotificationType optional Option.ParticipantCompletedTransactionNotificationTypes Simple Type
DisableDocumentDownloads optional xs:boolean
EnableAccessToAllTransactionDocuments optional xs:boolean
CertificationType optional Option.ParticipantCertificationTypes Simple Type
CompletedDocumentBehaviorType optional Option.ParticipantCompletedDocumentBehaviorTypes Simple Type
CancelledTaskBehaviorType optional Option.ParticipantCancelledTaskBehaviorTypes Simple Type
ErrorBehaviorType optional Option.ParticipantErrorBehaviorTypes Simple Type
DocumentTaskStatusPageBehaviorType optional Option.ParticipantDocumentTaskStatusPageBehaviorTypes Simple Type
ConfirmSignatureIntent optional xs:boolean
ClientReturnUrl optional xs:string
FullName optional xs:string
QueryForName optional xs:boolean
NormalizeFullName optional xs:boolean
EmailAddress optional xs:string
QueryForEmailAddress optional xs:boolean
Title optional xs:string
QueryForTitle optional xs:boolean
Organization optional xs:string
QueryForOrganization optional xs:boolean
ThirdPartyData optional xs:string
DownloadWindowInMinutes optional xs:int
DownloadLimit optional xs:short
Jurisdiction optional ParticipantJurisdictionModel Complex Type
Sequence
Country optional xs:string
StateProvince optional xs:string
EmailNotifications optional ArrayOfEmailNotificationModel Complex Type
Sequence
WorkflowActions optional ArrayOfParticipantWorkflowActionModel Complex Type
Sequence
ParticipantWorkflowActionModel 0..∞ ParticipantWorkflowActionModel Complex Type
Sequence
Data optional xs:string
Url optional xs:string
Description optional xs:string
ActionStatus optional xs:int
PhoneNumber optional xs:string
EmailAddress optional xs:string
StartedDate optional xs:dateTime
NextRetryDate optional xs:dateTime
RetryLimitDate optional xs:dateTime
CompletedDate optional xs:dateTime
Data optional xs:string
Type optional Option.ParticipantActionTypes Simple Type
IsPreAuthentication optional xs:boolean
NotRequiredAfterFirstOccurrence optional xs:boolean
ButtonTextPositive optional xs:string
ButtonTextNegative optional xs:string
Content optional xs:string
DefineParticipantOptions optional ParticipantActionDefineParticipantOptionsModel Complex Type
EmailTemplatePlaceholders optional ArrayOfEmailTemplatePlaceholderModel Complex Type
Sequence
EmailTemplatePlaceholderModel 0..∞ EmailTemplatePlaceholderModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
Tasks optional ArrayOfTaskInsertModel Complex Type
Sequence
TaskInsertModel 0..∞ TaskInsertModel Complex Type
ser:Id optional xs:ID
ser:Ref optional xs:IDREF
Sequence
AccessOrder optional xs:int
ContentPlaceholders optional ArrayOfContentPlaceholderModel Complex Type
Sequence
ContentPlaceholderModel 0..∞ ContentPlaceholderModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
ContentSetName optional xs:string
LanguagePreferred optional xs:string
AllowReassignment optional xs:boolean
Role optional xs:string
Initials optional xs:string
QueryForInitials optional xs:boolean
BrandName optional xs:string
PdfFieldForFullName optional xs:string
PdfFieldForFirstName optional xs:string
PdfFieldForLastName optional xs:string
PdfFieldForEmailAddress optional xs:string
PdfFieldForTitle optional xs:string
PdfFieldForOrganization optional xs:string
OverrideDefaultParticipantPdfFields optional xs:boolean
SendRequestViaSms optional xs:boolean
PhoneNumber optional xs:string
SmsCredentialName optional xs:string
ParticipantInsertIdentity optional xs:int
IsDefinedParticipant optional xs:boolean
WorkflowActions optional ArrayOfTransactionWorkflowActionModel Complex Type
Sequence
TransactionWorkflowActionModel 0..∞ TransactionWorkflowActionModel Complex Type
Sequence
Data optional xs:string
Url optional xs:string
Description optional xs:string
ActionStatus optional xs:int
PhoneNumber optional xs:string
EmailAddress optional xs:string
StartedDate optional xs:dateTime
NextRetryDate optional xs:dateTime
RetryLimitDate optional xs:dateTime
CompletedDate optional xs:dateTime
Type optional Option.TransactionActionTypes Simple Type
MetaData optional ArrayOfMetaDataModel Complex Type
Sequence
MetaDataModel 0..∞ MetaDataModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
SendCompletedNotification optional xs:boolean
SendCancelledNotification optional xs:boolean
SendExpiredNotification optional xs:boolean
EnableMessagePromptOnCancel optional xs:boolean
ThirdPartyNotifications optional ArrayOfTransactionNotificationDetailsModel Complex Type
EnforceAddDigitalSignaturesForAllPDFDocumentsType optional DigitalSignatureType Simple Type
IncludeUploadedAttachmentsInThirdPartyNotifications optional xs:boolean
EmailTemplateSetLanguage optional xs:string
Used By
Transactions Element
ArrayOfTransactionCreateModel Element
Transactions Element
Source
<xs:complexType name="ArrayOfTransactionCreateModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" maxOccurs="unbounded" name="TransactionCreateModel" nillable="true" type="tns:TransactionCreateModel" />
  </xs:sequence>
</xs:complexType>
See Also
Transaction
