ServiceReturns
DocumentDetailsServiceReturnModel Complex Type
ServiceReturns : DocumentDetailsServiceReturnModel Complex Type
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.ServiceReturns

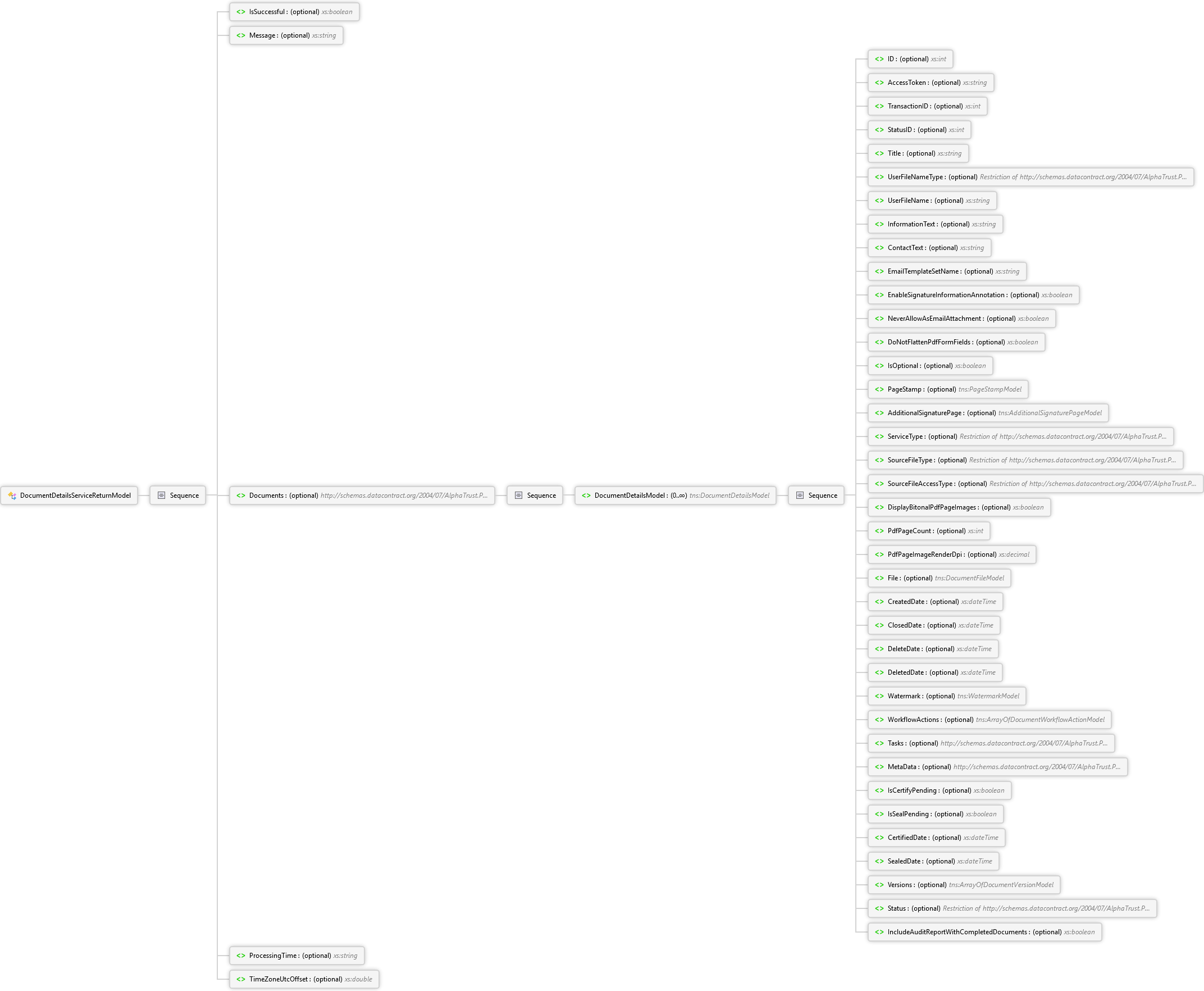

Diagram
TimeZoneUtcOffset Element ProcessingTime Element IncludeAuditReportWithCompletedDocuments Element Status Element Versions Element SealedDate Element CertifiedDate Element IsSealPending Element IsCertifyPending Element MetaData Element Tasks Element WorkflowActions Element Watermark Element DeletedDate Element DeleteDate Element ClosedDate Element CreatedDate Element File Element PdfPageImageRenderDpi Element PdfPageCount Element DisplayBitonalPdfPageImages Element SourceFileAccessType Element SourceFileType Element ServiceType Element AdditionalSignaturePage Element PageStamp Element IsOptional Element DoNotFlattenPdfFormFields Element NeverAllowAsEmailAttachment Element EnableSignatureInformationAnnotation Element EmailTemplateSetName Element ContactText Element InformationText Element UserFileName Element UserFileNameType Element Title Element StatusID Element TransactionID Element AccessToken Element ID Element Sequence DocumentDetailsModel Element Sequence Documents Element Message Element IsSuccessful Element Sequence DocumentDetailsServiceReturnModel Complex Type
Overview
DocumentDetailsServiceReturnModel
Sequence
IsSuccessful optional xs:boolean
Message optional xs:string
Documents optional ArrayOfDocumentDetailsModel Complex Type
Sequence
DocumentDetailsModel 0..∞ DocumentDetailsModel Complex Type
Sequence
ID optional xs:int
AccessToken optional xs:string
TransactionID optional xs:int
StatusID optional xs:int
Title optional xs:string
UserFileNameType optional Option.DocumentUserFileNameTypes Simple Type
UserFileName optional xs:string
InformationText optional xs:string
ContactText optional xs:string
EmailTemplateSetName optional xs:string
EnableSignatureInformationAnnotation optional xs:boolean
NeverAllowAsEmailAttachment optional xs:boolean
DoNotFlattenPdfFormFields optional xs:boolean
IsOptional optional xs:boolean
PageStamp optional PageStampModel Complex Type
Sequence
Type optional Option.DocumentPageStampTypes Simple Type
Value optional xs:int
OtherValue optional xs:string
Increment optional xs:int
AdditionalSignaturePage optional AdditionalSignaturePageModel Complex Type
Sequence
HeaderText optional xs:string
StatementText optional xs:string
NumberOfPages optional xs:int
ServiceType optional Option.DocumentServiceTypes Simple Type
SourceFileType optional Option.DocumentSourceFileTypes Simple Type
SourceFileAccessType optional Option.DocumentSourceFileAccessTypes Simple Type
DisplayBitonalPdfPageImages optional xs:boolean
PdfPageCount optional xs:int
PdfPageImageRenderDpi optional xs:decimal
File optional DocumentFileModel Complex Type
Sequence
FileBytes optional xs:base64Binary
FileName optional xs:string
MimeType optional xs:string
CreatedDate optional xs:dateTime
ClosedDate optional xs:dateTime
DeleteDate optional xs:dateTime
DeletedDate optional xs:dateTime
Watermark optional WatermarkModel Complex Type
Sequence
WorkflowActions optional ArrayOfDocumentWorkflowActionModel Complex Type
Sequence
DocumentWorkflowActionModel 0..∞ DocumentWorkflowActionModel Complex Type
Sequence
Data optional xs:string
Url optional xs:string
Description optional xs:string
ActionStatus optional xs:int
PhoneNumber optional xs:string
EmailAddress optional xs:string
StartedDate optional xs:dateTime
NextRetryDate optional xs:dateTime
RetryLimitDate optional xs:dateTime
CompletedDate optional xs:dateTime
Type optional Option.DocumentActionTypes Simple Type
Tasks optional ArrayOfTaskDetailsModel Complex Type
Sequence
TaskDetailsModel 0..∞ TaskDetailsModel Complex Type
Sequence
ID optional xs:int
DocumentID optional xs:int
ParticipantID optional xs:int
StatusID optional xs:int
Type optional Option.TaskTypes Simple Type
SignatureApplicationType optional Option.SignatureBlockSignatureApplicationTypes Simple Type
SignatureSizeType optional Option.SignatureBlockSignatureApplicationSizes Simple Type
SignatureCount optional xs:int
PdfFormFillingAllowed optional xs:boolean
PdfFormFillingFieldPrefix optional xs:string
CreatedDate optional xs:dateTime
ClosedDate optional xs:dateTime
NotificationSentDate optional xs:dateTime
TaskStartedDate optional xs:dateTime
IntentConfirmedDate optional xs:dateTime
IpAddress optional xs:string
HostName optional xs:string
AccessToken optional xs:string
EmailTemplateSetName optional xs:string
LastComment optional xs:string
SignatureBlock optional SignatureBlockModel Complex Type
WorkflowActions optional ArrayOfTaskWorkflowActionModel Complex Type
FileAttachments optional ArrayOfFileAttachmentDetailsModel Complex Type
IsOptional optional xs:boolean
TouchPreferredSecondarySignatureApplicationType optional Option.SignatureBlockTouchPreferredSecondarySignatureApplicationTypes Simple Type
PromptToDrawNewSignature optional xs:boolean
Status optional Option.TransactionStatusTypes Simple Type
EmailTemplateSetLanguage optional xs:string
Copy optional xs:string
Name optional xs:string
AccountTemplateSet optional xs:string
AccountTemplateSetLanguage optional xs:string
EmailAddress optional xs:string
Document optional DocumentDetailsModel Complex Type
Sequence
ID optional xs:int
AccessToken optional xs:string
TransactionID optional xs:int
StatusID optional xs:int
Title optional xs:string
UserFileNameType optional Option.DocumentUserFileNameTypes Simple Type
UserFileName optional xs:string
InformationText optional xs:string
ContactText optional xs:string
EmailTemplateSetName optional xs:string
EnableSignatureInformationAnnotation optional xs:boolean
NeverAllowAsEmailAttachment optional xs:boolean
DoNotFlattenPdfFormFields optional xs:boolean
IsOptional optional xs:boolean
PageStamp optional PageStampModel Complex Type
AdditionalSignaturePage optional AdditionalSignaturePageModel Complex Type
ServiceType optional Option.DocumentServiceTypes Simple Type
SourceFileType optional Option.DocumentSourceFileTypes Simple Type
SourceFileAccessType optional Option.DocumentSourceFileAccessTypes Simple Type
DisplayBitonalPdfPageImages optional xs:boolean
PdfPageCount optional xs:int
PdfPageImageRenderDpi optional xs:decimal
File optional DocumentFileModel Complex Type
CreatedDate optional xs:dateTime
ClosedDate optional xs:dateTime
DeleteDate optional xs:dateTime
DeletedDate optional xs:dateTime
Watermark optional WatermarkModel Complex Type
WorkflowActions optional ArrayOfDocumentWorkflowActionModel Complex Type
Tasks optional ArrayOfTaskDetailsModel Complex Type
MetaData optional ArrayOfMetaDataModel Complex Type
IsCertifyPending optional xs:boolean
IsSealPending optional xs:boolean
CertifiedDate optional xs:dateTime
SealedDate optional xs:dateTime
Versions optional ArrayOfDocumentVersionModel Complex Type
Status optional Option.TransactionStatusTypes Simple Type
IncludeAuditReportWithCompletedDocuments optional xs:boolean
MetaData optional ArrayOfMetaDataModel Complex Type
Sequence
MetaDataModel 0..∞ MetaDataModel Complex Type
Sequence
Name optional xs:string
Value optional xs:string
IsCertifyPending optional xs:boolean
IsSealPending optional xs:boolean
CertifiedDate optional xs:dateTime
SealedDate optional xs:dateTime
Versions optional ArrayOfDocumentVersionModel Complex Type
Sequence
DocumentVersionModel 0..∞ DocumentVersionModel Complex Type
Sequence
ID optional xs:int
DocumentID optional xs:int
Version optional xs:short
TransID optional xs:int
ProntoID optional xs:string
FileName optional xs:string
TSCreate optional xs:dateTime
TSSealed optional xs:dateTime
TSCertified optional xs:dateTime
SealPending optional xs:short
CertifyPending optional xs:short
DocumentSHA256Hash optional xs:string
VersionInfo optional xs:string
IsFinal optional xs:boolean
Status optional Option.TransactionStatusTypes Simple Type
IncludeAuditReportWithCompletedDocuments optional xs:boolean
ProcessingTime optional xs:string
TimeZoneUtcOffset optional xs:double
Used By
GetDocumentsResult Element
InsertDocumentsResult Element
DocumentDetailsServiceReturnModel Element
Source
<xs:complexType name="DocumentDetailsServiceReturnModel" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:sequence>
    <xs:element minOccurs="0" name="IsSuccessful" type="xs:boolean" />
    <xs:element minOccurs="0" name="Message" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="Documents" nillable="true" type="q13:ArrayOfDocumentDetailsModel" xmlns:q13="http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Document" />
    <xs:element minOccurs="0" name="ProcessingTime" nillable="true" type="xs:string" />
    <xs:element minOccurs="0" name="TimeZoneUtcOffset" type="xs:double" />
  </xs:sequence>
</xs:complexType>
See Also
ServiceReturns
