Task
TaskInsertRequestModel Element
Task : TaskInsertRequestModel Element
Namespace http://schemas.datacontract.org/2004/07/AlphaTrust.Pronto.ServiceContracts.Models.Task
Type
TaskInsertRequestModel Complex Type

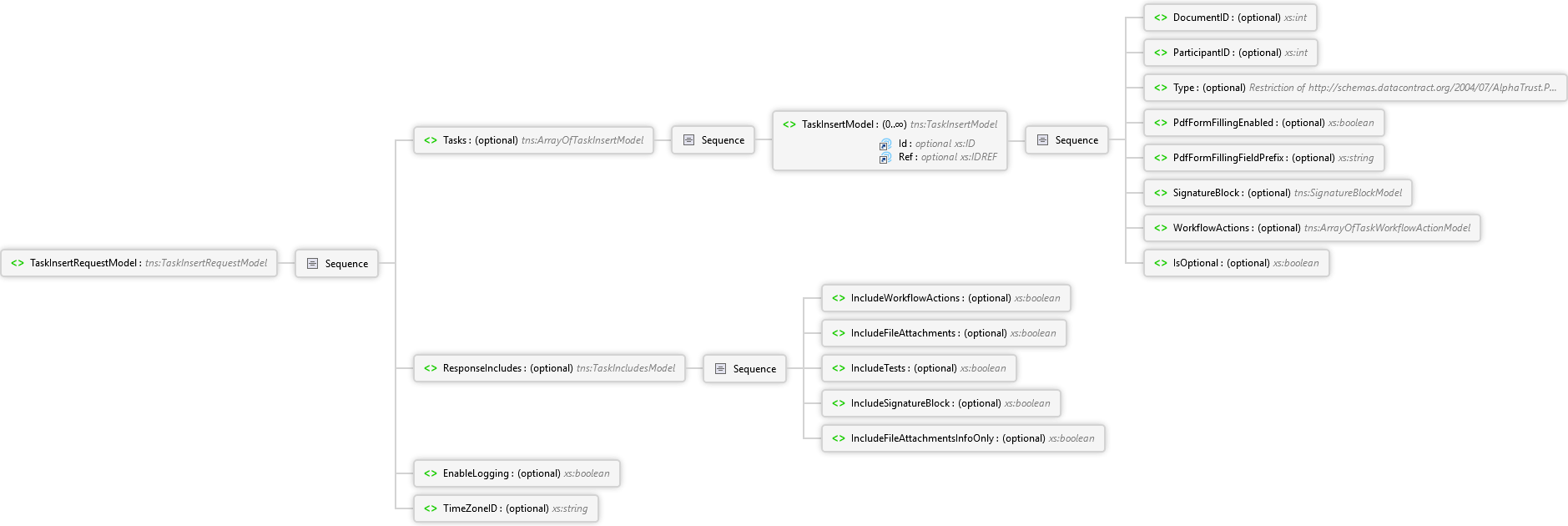

Diagram
TimeZoneID Element EnableLogging Element IncludeFileAttachmentsInfoOnly Element IncludeSignatureBlock Element IncludeTests Element IncludeFileAttachments Element IncludeWorkflowActions Element Sequence ResponseIncludes Element IsOptional Element WorkflowActions Element SignatureBlock Element PdfFormFillingFieldPrefix Element PdfFormFillingEnabled Element Type Element ParticipantID Element DocumentID Element Sequence TaskInsertModel Element Sequence Tasks Element Sequence TaskInsertRequestModel Element
Overview
TaskInsertRequestModel TaskInsertRequestModel Complex Type
Sequence
Tasks optional ArrayOfTaskInsertModel Complex Type
Sequence
TaskInsertModel 0..∞ TaskInsertModel Complex Type
ser:Id optional xs:ID
ser:Ref optional xs:IDREF
Sequence
DocumentID optional xs:int
ParticipantID optional xs:int
Type optional Option.TaskTypes Simple Type
PdfFormFillingEnabled optional xs:boolean
PdfFormFillingFieldPrefix optional xs:string
SignatureBlock optional SignatureBlockModel Complex Type
Sequence
Signature optional SignatureModel Complex Type
Sequence
PdfPlacement optional PdfSignaturePlacementModel Complex Type
Sequence
FormField_FieldName optional xs:string
FormField_InstanceOfField optional xs:int
SearchText_TextToSearch optional xs:string
SearchText_SpecificPageNumberToSearch optional xs:int
SearchText_InstanceOfText optional xs:int
PageCoordinates_PageNumber optional xs:int
SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type
XOffset optional xs:float
YOffset optional xs:float
AutoFit optional xs:boolean
MaxWidth optional xs:float
MaxHeight optional xs:float
FontSizeMinimum optional xs:float
ExcludeIfPlacementNotFound optional xs:boolean
ApplicationType optional Option.SignatureBlockSignatureApplicationTypes Simple Type
ApplicationSize optional Option.SignatureBlockSignatureApplicationSizes Simple Type
DisplaySignHereTagForHardwareCaptureDeviceSignatureOnHtmlDocuments optional xs:boolean
FontName optional xs:string
FontColor optional Option.SignatureBlockSignatureColors Simple Type
IsBold optional xs:boolean
IsItalic optional xs:boolean
ImageStampedFontSize optional xs:short
ButtonPositiveText optional xs:string
ButtonNegativeText optional xs:string
PlaceSignatureOnAdditionalPdfSignaturePage optional xs:boolean
TouchPreferredSecondaryApplicationType optional Option.SignatureBlockTouchPreferredSecondarySignatureApplicationTypes Simple Type
PromptToDrawNewSignature optional xs:boolean
AdditionalPdfDataPlacements optional ArrayOfSignatureBlockPdfDataPlacementModel Complex Type
Sequence
SignatureBlockPdfDataPlacementModel 0..∞ SignatureBlockPdfDataPlacementModel Complex Type
Sequence
FormField_FieldName optional xs:string
FormField_InstanceOfField optional xs:int
SearchText_TextToSearch optional xs:string
SearchText_SpecificPageNumberToSearch optional xs:int
SearchText_InstanceOfText optional xs:int
PageCoordinates_PageNumber optional xs:int
SearchText_OffsetStartPosition optional Option.SignatureBlockSearchTextOffsetStartPositions Simple Type
XOffset optional xs:float
YOffset optional xs:float
AutoFit optional xs:boolean
MaxWidth optional xs:float
MaxHeight optional xs:float
FontSizeMinimum optional xs:float
ExcludeIfPlacementNotFound optional xs:boolean
Type optional Option.SignatureBlockDataTypes Simple Type
FontName optional Option.SignatureBlockFontNames Simple Type
FontColor optional Option.SignatureBlockDataColors Simple Type
CustomText optional xs:string
FontSize optional xs:float
AdditionalHtmlDataPlacements optional SignatureBlockHtmlDataPlacementModel Complex Type
Sequence
DisplayTitle optional xs:boolean
DisplayOrganization optional xs:boolean
DisplayEmailAddress optional xs:boolean
DisplayDateTime optional xs:boolean
DisplayPrintedName optional xs:boolean
PdfOpenPromptPageNumber optional xs:int
HtmlOpenPromptAnchor optional xs:string
WorkflowActions optional ArrayOfTaskWorkflowActionModel Complex Type
Sequence
TaskWorkflowActionModel 0..∞ TaskWorkflowActionModel Complex Type
Sequence
Data optional xs:string
Url optional xs:string
Description optional xs:string
ActionStatus optional xs:int
PhoneNumber optional xs:string
EmailAddress optional xs:string
StartedDate optional xs:dateTime
NextRetryDate optional xs:dateTime
RetryLimitDate optional xs:dateTime
CompletedDate optional xs:dateTime
Type optional Option.TaskActionTypes Simple Type
ButtonTextPositive optional xs:string
ButtonTextNegative optional xs:string
Content optional xs:string
NotRequiredAfterFirstOccurrence optional xs:boolean
IsOptional optional xs:boolean
ResponseIncludes optional TaskIncludesModel Complex Type
Sequence
IncludeWorkflowActions optional xs:boolean
IncludeFileAttachments optional xs:boolean
IncludeTests optional xs:boolean
IncludeSignatureBlock optional xs:boolean
IncludeFileAttachmentsInfoOnly optional xs:boolean
EnableLogging optional xs:boolean
TimeZoneID optional xs:string
Source
<xs:element name="TaskInsertRequestModel" nillable="true" type="tns:TaskInsertRequestModel" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
